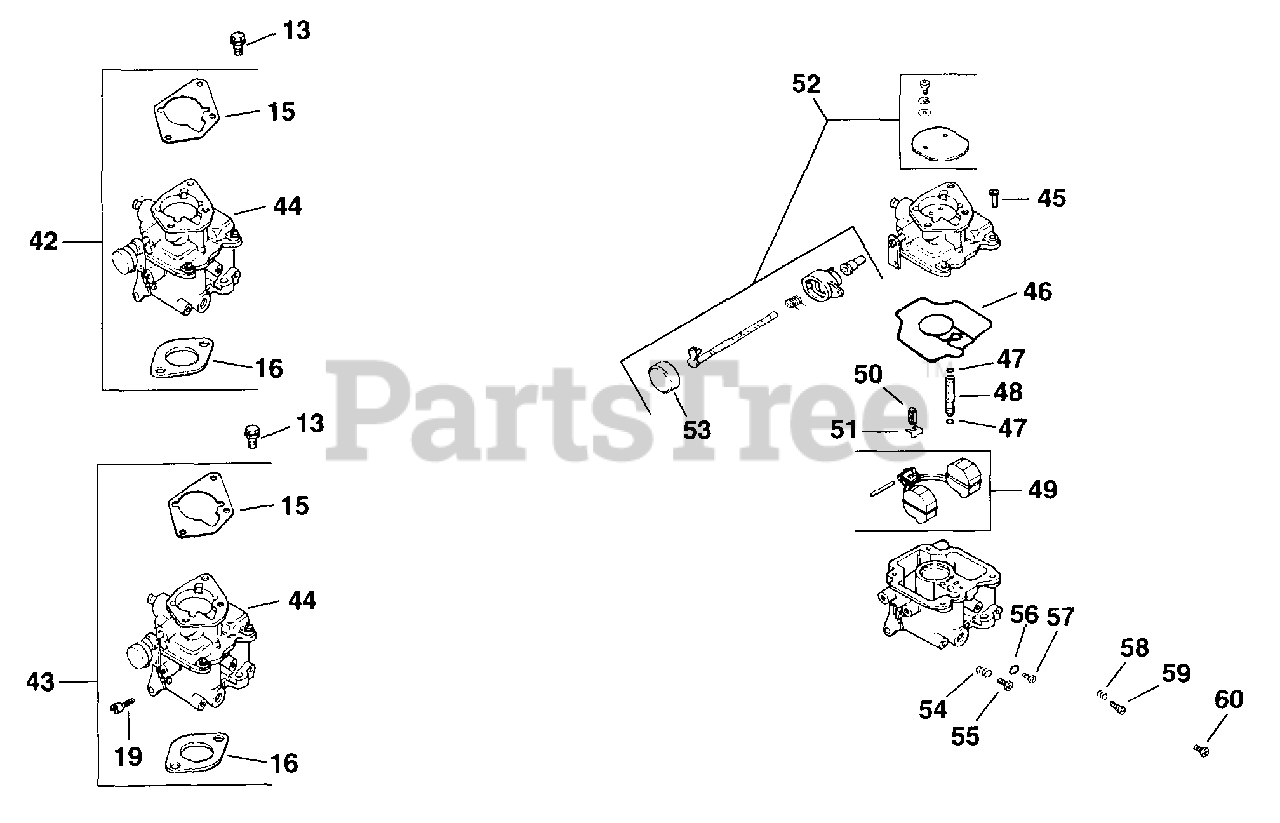

CH20-64543 - Kohler Command PRO Twin Engine, Made for Power King, 20hp, 14.9kW Fuel System (Cont.) 8-24-304 (TP-2439-C) Rev 10/3/2006 Parts Diagram

Command PRO Twin Engine, Made for Power King, 20hp, 14.9kW

Fuel System (Cont.) 8-24-304 (TP-2439-C) Rev 10/3/2006 Parts Diagram

  • Title
13

Kohler M-0651030

SCREW - USE M-651030
(Superseded to M-651030-S)

$

$

Not available

15

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

16

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

42

Kohler 24 853 01

CARBURETOR - USE 24 853 31
(Superseded to 24 853 31)

Note: Includes 15,16,44, carburetor assembly 24-053-01. Use before Serial No. 2417500017.

$411.99

$

In Stock, only 1 left!

0

44

Kohler 24 053 01

Carburetor assembly

Note: Includes 45-60, carburetor repair kit 24-757-03, high altitude kits 24-755-01 & 24-755-02. Use before Serial No. 2417500017.

$

$

Not available

45

Kohler 24 086 09-S

SCREW, CARBURETOR BODY

$2.99

$

In Stock, Qty 8

0

46

Kohler 24 041 09-S

GASKET, CARBURETOR BODY

$31.99

$

In Stock, only 1 left!

0

47

Kohler 24 153 02-S

O-RING, SLOW JET

$6.99

$

In Stock, only 3 left!

0

48

Kohler 24 337 01-S

JET, SLOW

$36.99

$

Usually ships in 2-5 days

0

49

Kohler 24 757 02-S

KIT, REPAIR FLOAT

$133.99

$

Usually ships in 2-5 days

0

50

Kohler 24 462 01-S

VALVE, INLET NEEDLE

$39.99

$

Usually ships in 2-5 days

0

51

Kohler 24 154 01-S

CLIP, INLET NEEDLE VALVE

$7.49

$

Usually ships in 2-5 days

0

52

Kohler 24 757 07-S

KIT, REPAIR CHOKE

Note: Includes 53

$95.99

$

In Stock, only 1 left!

0

53

Kohler 24 173 02-S

CAP, CHOKE LEVER

$7.99

$

Usually ships in 2-5 days

0

54

Kohler 24 089 10-S

SPRING, IDLE SPEED ADJ SCREW

$6.99

$

Usually ships in 2-5 days

0

55

Kohler 24 086 10-S

SCREW, IDLE

$3.99

$

Usually ships in 2-5 days

0

56

Kohler 24 153 03-S

O-RING, MAIN JET SCREW

$4.49

$

In Stock, only 2 left!

0

57

Kohler 24 337 02-S

JET, MAIN

$29.99

$

Usually ships in 2-5 days

0

58

Kohler 24 089 11-S

SPRING, IDLE NEEDLE

$5.99

$

Usually ships in 2-5 days

0

59

Kohler 24 368 01-S

NEEDLE, IDLE

$13.99

$

Usually ships in 2-5 days

0

60

Kohler 24 086 11-S

SCREW, FLG M8X1.00X10

$9.49

$

Usually ships in 2-5 days

0
