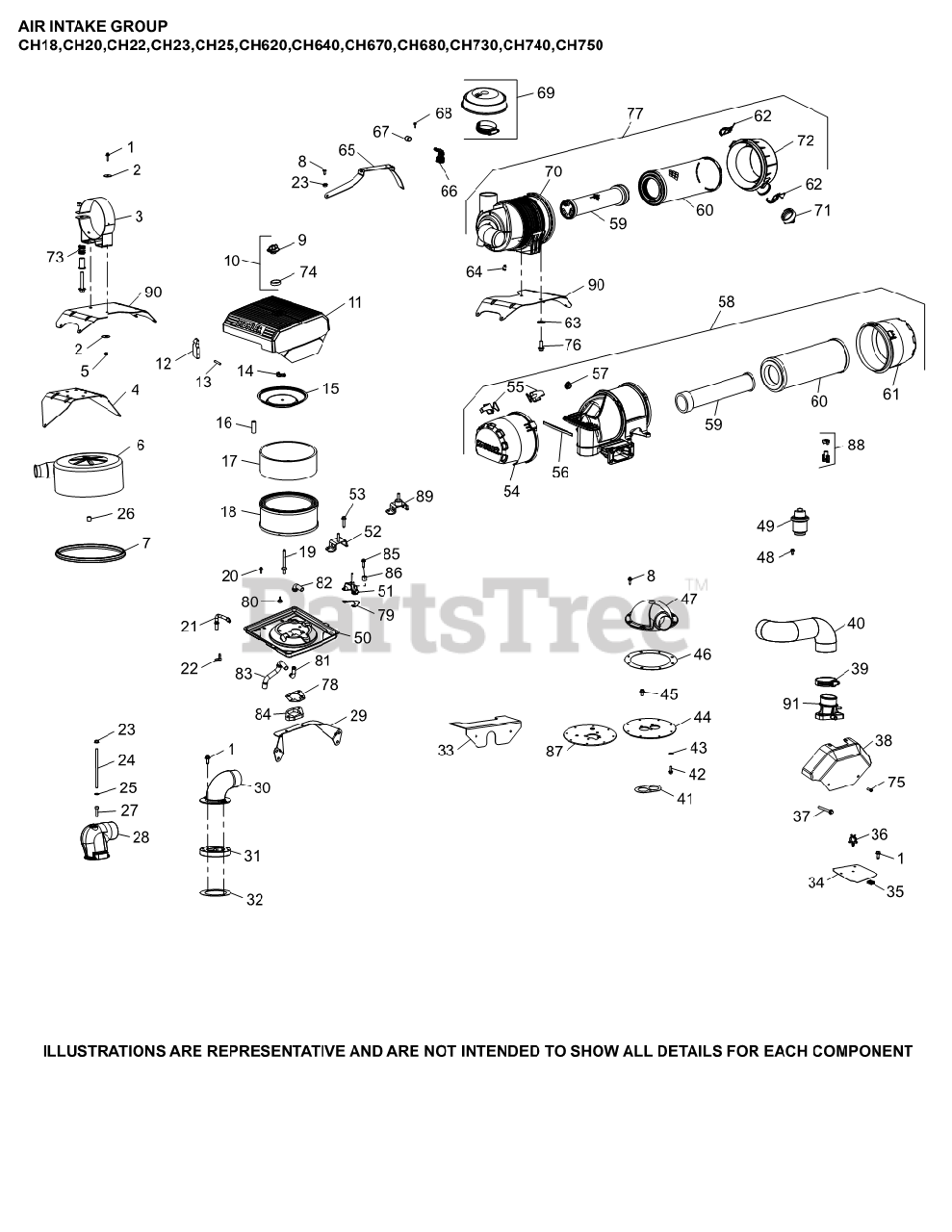

CH20-64532 - Kohler Command PRO Twin Engine, Made for Schwiess, 20hp, 14.9kW Air Intake 10-24-5 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Schwiess, 20hp, 14.9kW

Air Intake 10-24-5 CH18-750 Parts Diagram

  • Title

6

Kohler 24 096 52-S

COVER, AIR CLEANER

$166.99

$

Usually ships in 2-5 days

0

14

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

15

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

16

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 1 left!

0

17

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

In Stock, only 4 left!

0

18

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 14

0

20

Kohler 24 086 53-S

SCREW, FLG THD FRM M6X1.0X16

$2.49

$

In Stock, Qty 6

0

21

Kohler 24 326 131-S

HOSE, EVAP

$4.49

$

In Stock, only 1 left!

0

22

Kohler 24 294 27-S

CONNECTOR, EVAPORATIVE HOSE

$2.49

$

Usually ships in 2-5 days

0

26

Kohler 41 032 02-S

SEAL

$4.99

$

In Stock, only 1 left!

0

50

Kohler 24 094 91-S

KIT, AIR CLEANER BASE

$71.99

$

Usually ships in 2-5 days

0

52

Kohler 24 126 207-S

BRACKET, AIR CLEANER

$13.99

$

Usually ships in 2-5 days

0

78

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0
