CH18-62648 - Kohler Command PRO Twin Engine, Made for Case, 18hp, 13.4kW Fuel System Group 8-24-583 Parts Diagram

Command PRO Twin Engine, Made for Case, 18hp, 13.4kW

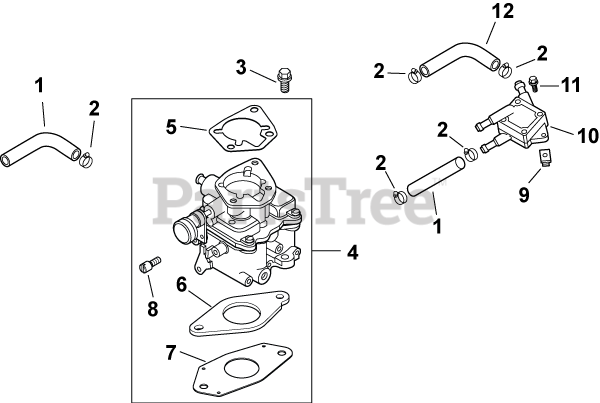

Fuel System Group 8-24-583 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

4

Kohler 24 853 35-S

KIT, CARBURETOR W/GASKETS-KSF
(Superseded to 24 853 319-S)

$291.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

6

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 11

0

7

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 7

0

8

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

9

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, Qty 9

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 12

0

11

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

12

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, only 1 left!

0

25086158-S

Kohler 25 086 158-S

SCREW, FLNG THD FRM M6X1.0X10 USE 25 086 406-S
(Superseded to 25 086 406-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 9

0
