CH18-62645 - Kohler Command PRO Twin Engine, Made for Continental Engine, 18hp, 13.4kW Ignition/ Charging Group 5-24-22 Parts Diagram

Command PRO Twin Engine, Made for Continental Engine, 18hp, 13.4kW

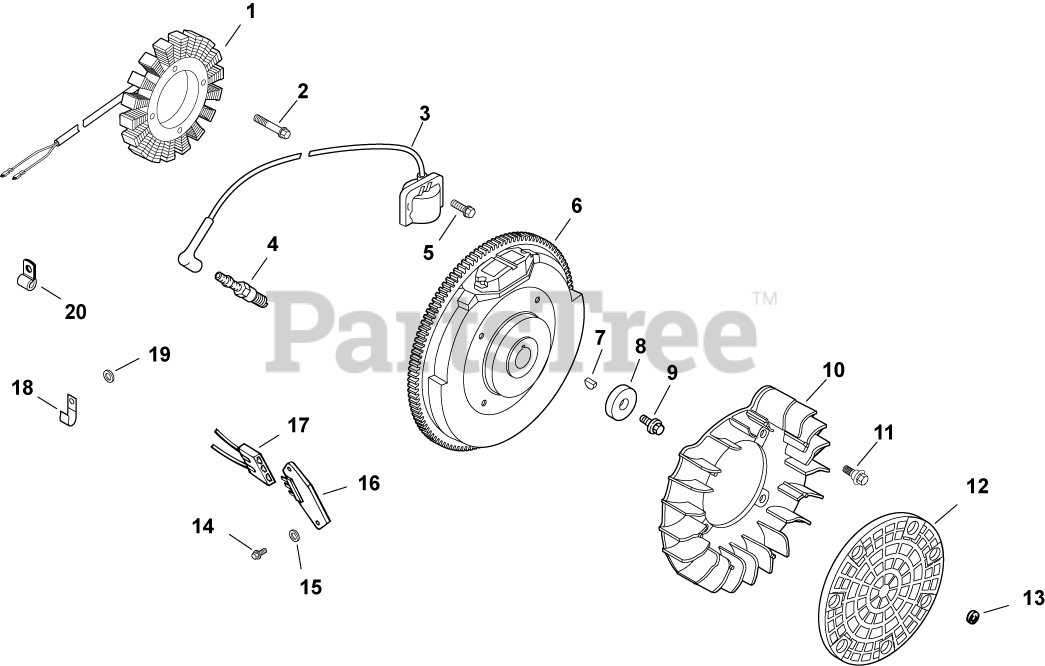

Ignition/ Charging Group 5-24-22 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 7

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

4

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

6

Kohler 24 025 04-S

FLYWHEEL, PAINTED-USE 24 025 55-S
(Superseded to 24 025 55-S)

$

$

Not available

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 24 157 15-S

FAN - USE (#24 157 11-S)
(Superseded to 24 755 253-S)

$46.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

12

Kohler 24 018 03-S

RETAINER

$2.49

$

In Stock, only 4 left!

0

13

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

14

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

15

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

16

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

17

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

18

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

19

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

20

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$44.99

$

Usually ships in 2-5 days

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 2 left!

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRATED

$13.99

$

In Stock, only 1 left!

0

2451834-S

Kohler 24 518 34-S

LEAD

Note: NOT ILLUSTRATED

$

$

Not available
