CH18-62645 - Kohler Command PRO Twin Engine, Made for Continental Engine, 18hp, 13.4kW Engine Controls 9-24-385 Parts Diagram

Command PRO Twin Engine, Made for Continental Engine, 18hp, 13.4kW

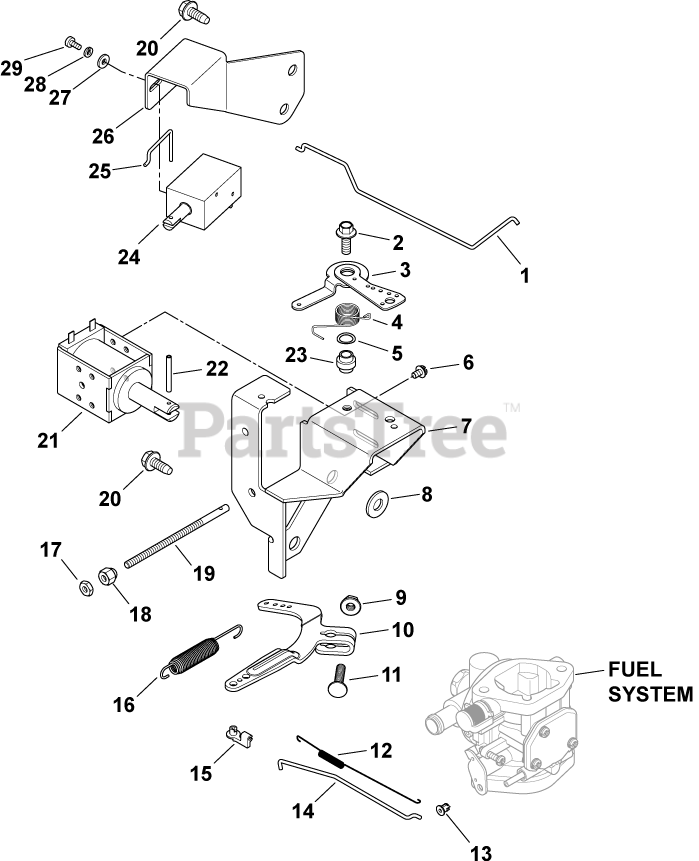

Engine Controls 9-24-385 Parts Diagram

  • Title

1

Kohler 24 079 21-S

LINKAGE, CHOKE
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0

2

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

3

Kohler 24 090 30-S

LEVER, CHOKE CONTROL

$24.99

$

Usually ships in 2-5 days

0

4

Kohler 24 089 31-S

SPRING, CHOKE RETURN

$25.99

$

Usually ships in 2-5 days

0

5

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

6

Kohler 25 086 111-S

SCREW, SLT WSH HD 8-32X1/4"

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 24 126 122-S

BRACKET, SOLENOID-USE 24 126 195-S
(Superseded to 24 126 251-S)

$81.99

$

Usually ships in 2-5 days

0

8

Kohler X-25-5-S

WASHER

$2.49

$

Usually ships in 2-5 days

0

9

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

10

Kohler 24 090 34-S

LEVER, GOVERNOR-USE 24 090 58-S
(Superseded to 24 090 52-S)

$8.99

$

Usually ships in 2-5 days

0

11

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

12

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, Qty 9

0

13

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

Usually ships in 2-5 days

0

14

Kohler 24 079 01-S

LINKAGE, THROTTLE

$3.99

$

In Stock, Qty 7

0

15

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

16

Kohler 24 089 50-S

SPRING, GOVERNOR (CLEAR)

$7.99

$

In Stock, only 1 left!

0

17

Kohler 25 100 18-S

NUT, MACH SCREW #10-32 GRD 2

$3.49

$

Usually ships in 2-5 days

0

18

Kohler 25 100 06-S

NUT, ADJUSTING

$8.99

$

Usually ships in 2-5 days

0

19

Kohler 24 411 03-S

ROD, SPEED CONTROL

$15.99

$

Usually ships in 2-5 days

0

20

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

21

Kohler 24 435 06-S

SOLENOID, IDLE

$156.99

$

In Stock, only 2 left!

0

22

Kohler X-280-25-S

PIN

$3.49

$

In Stock, Qty 9

0

23

Kohler 47 112 19-S

SPACER
(Superseded to 25 112 34-S)

$3.49

$

Usually ships in 2-5 days

0

24

Kohler 15 435 01-S

SOLENOID - CHOKE

$92.99

$

Usually ships in 2-5 days

0

25

Kohler 24 079 11-S

LINKAGE, CHOKE

$22.99

$

Usually ships in 2-5 days

0

26

Kohler 24 126 60-S

BRACKET, SOLENOID
(Superseded to 24 126 267-S)

$42.99

$

Usually ships in 2-5 days

0

27

Kohler 24 468 13-S

WASHER, FLAT

$3.49

$

Usually ships in 2-5 days

0

28

Kohler X-18-1-S

WASHER, SPRING LOCK #6

$3.99

$

Usually ships in 2-5 days

0

29

Kohler X-52-14-S

SCREW

$2.49

$

Usually ships in 2-5 days

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2417676-S

Kohler 24 176 76-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$11.99

$

Usually ships in 2-5 days

0

24755101-S

Kohler 24 755 101-S

KIT, SOLENOID CHOKE/IDLE

Note: NOT ILLUSTRATED

$533.99

$

Usually ships in 2-5 days

0
