CH18-62640 - Kohler Command PRO Twin Engine, Basic Version, 18hp, 13.4kW Fuel System Group 8-24-444 Parts Diagram

Command PRO Twin Engine, Basic Version, 18hp, 13.4kW

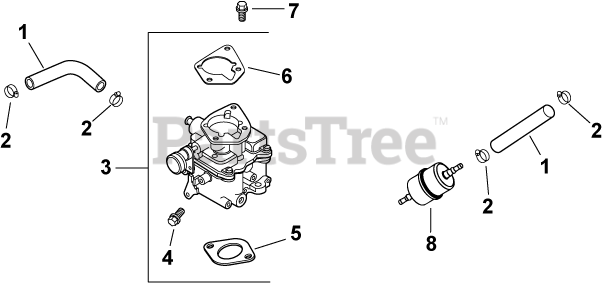

Fuel System Group 8-24-444 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 32-S

KIT, CARBURETOR W/GASKETS KSF
(Superseded to 24 853 309-S)

$289.99

$

In Stock, only 1 left!

0

4

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

6

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

7

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 1 left!

0

8

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

2475702-S

Kohler 24 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$133.99

$

Usually ships in 2-5 days

0

24755125-S

Kohler 24 755 125-S

KIT, HIGH ALTITUDE (4,000 - 8,000 FT)

Note: NOT ILLUSTRATED

$55.99

$

Usually ships in 2-5 days

0

2475701-S

Kohler 24 757 01-S

KIT, SOLENOID

Note: NOT ILLUSTRATED

$227.99

$

In Stock, only 1 left!

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$112.99

$

Usually ships in 2-5 days

0

2451824-S

Kohler 24 518 24-S

LEAD, GROUND

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0
