CH18-62629 - Kohler Command PRO Twin Engine, Made for Yangshou Wanfang, 18hp, 13.4kW Fuel System 8-24-468 Parts Diagram

Command PRO Twin Engine, Made for Yangshou Wanfang, 18hp, 13.4kW

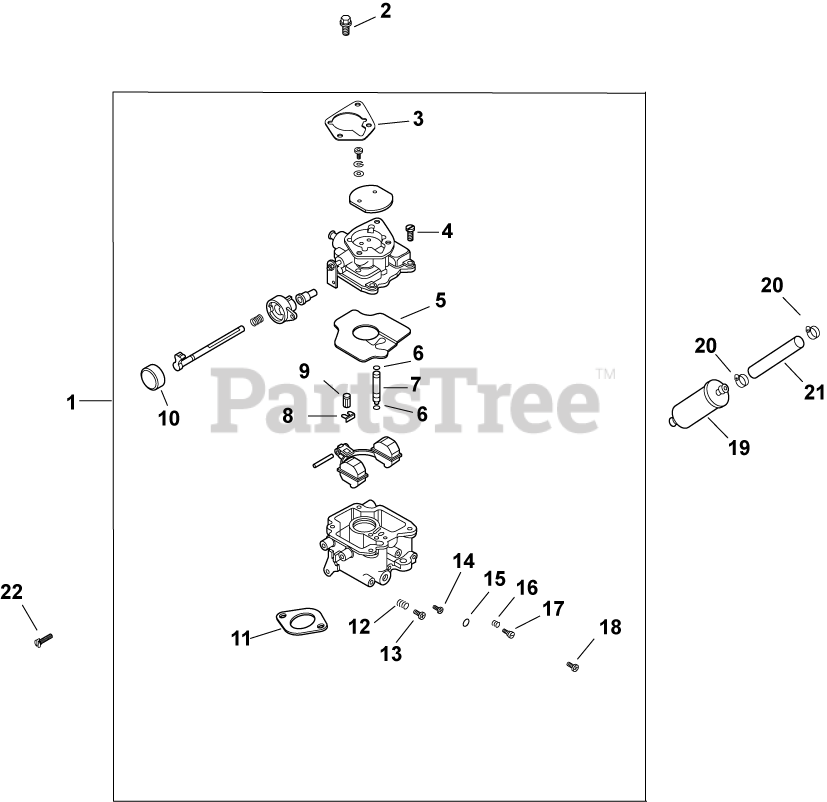

Fuel System 8-24-468 Parts Diagram

  • Title

1

Kohler 24 853 03-S

CARBURETOR W/GASKET

Note: (includes 3-18)

$

$

Not available

2

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

4

Kohler 24 086 09-S

SCREW, CARBURETOR BODY

$2.99

$

In Stock, Qty 8

0

5

Kohler 24 041 09-S

GASKET, CARBURETOR BODY

$31.99

$

In Stock, only 1 left!

0

6

Kohler 24 153 02-S

O-RING, SLOW JET

$6.99

$

In Stock, only 3 left!

0

7

Kohler 24 337 01-S

JET, SLOW

$36.99

$

Usually ships in 2-5 days

0

8

Kohler 24 154 01-S

CLIP, INLET NEEDLE VALVE

$7.49

$

Usually ships in 2-5 days

0

9

Kohler 24 462 01-S

VALVE, INLET NEEDLE

$39.99

$

Usually ships in 2-5 days

0

10

Kohler 24 173 02-S

CAP, CHOKE LEVER

$7.99

$

Usually ships in 2-5 days

0

11

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

12

Kohler 24 089 10-S

SPRING, IDLE SPEED ADJ SCREW

$6.99

$

Usually ships in 2-5 days

0

13

Kohler 24 086 10-S

SCREW, IDLE

$3.99

$

Usually ships in 2-5 days

0

14

Kohler 24 337 02-S

JET, MAIN

$29.99

$

Usually ships in 2-5 days

0

15

Kohler 24 153 03-S

O-RING, MAIN JET SCREW

$4.49

$

In Stock, only 2 left!

0

16

Kohler 24 089 11-S

SPRING, IDLE NEEDLE

$5.99

$

Usually ships in 2-5 days

0

17

Kohler 24 368 01-S

NEEDLE, IDLE

$13.99

$

Usually ships in 2-5 days

0

18

Kohler 24 086 11-S

SCREW, FLG M8X1.00X10

$9.49

$

Usually ships in 2-5 days

0

19

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

20

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

21

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

22

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

2433710-S

Kohler 24 337 10-S

JET, MAIN - OPTIONAL

Note: NOT ILLUSTRATED

$22.99

$

Usually ships in 2-5 days

0

2475707-S

Kohler 24 757 07-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$95.99

$

In Stock, only 1 left!

0

24755125-S

Kohler 24 755 125-S

KIT, HIGH ALTITUDE (4,000 - 8,000 FT)

Note: NOT ILLUSTRATED

$55.99

$

Usually ships in 2-5 days

0

2475702-S

Kohler 24 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$133.99

$

Usually ships in 2-5 days

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$112.99

$

Usually ships in 2-5 days

0
