CH18-62618 - Kohler Command PRO Twin Engine, Made for Moridge, 18hp, 13.4kW Fuel System 8-24-418 Parts Diagram

Command PRO Twin Engine, Made for Moridge, 18hp, 13.4kW

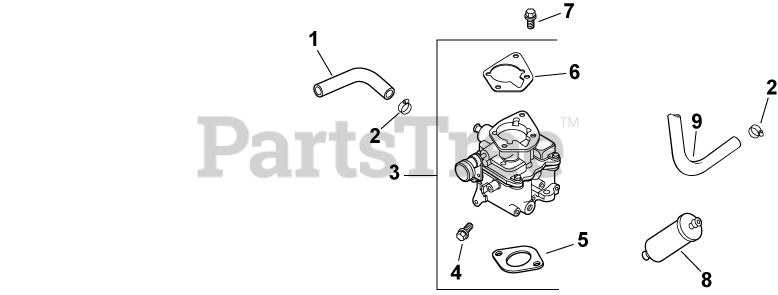

Fuel System 8-24-418 Parts Diagram

  • Title

1

Kohler 52 353 20-S

LINE, FUEL 10"

$

$

Not available

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 35-S

KIT, CARBURETOR W/GASKETS-KSF
(Superseded to 24 853 319-S)

Note: (Includes 4-6)

$291.99

$

Usually ships in 2-5 days

0

4

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

6

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

7

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

8

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 353 12-S

LINE, FUEL 11"

Note: carb to pump

$3.99

$

Usually ships in 2-5 days

0
