CH18-62594 - Kohler Command PRO Twin Engine, Made for Swenson Spreader, 18hp, 13.4kW Fuel System Group 8-24-139 Parts Diagram

Command PRO Twin Engine, Made for Swenson Spreader, 18hp, 13.4kW

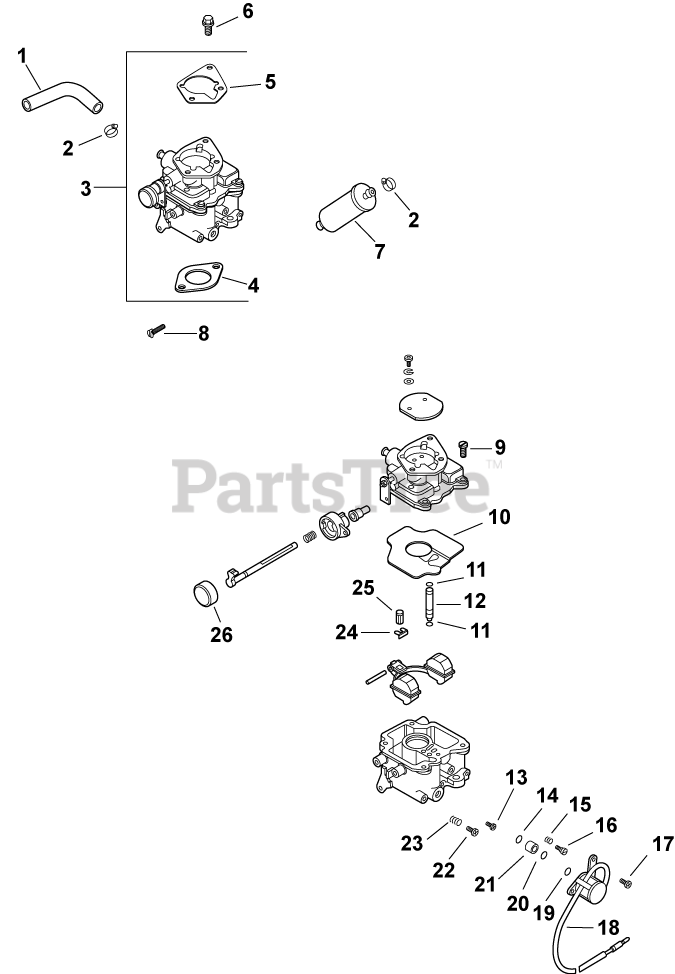

Fuel System Group 8-24-139 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 32-S

KIT, CARBURETOR W/GASKETS KSF
(Superseded to 24 853 309-S)

$289.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 9

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 19

0

6

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

7

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

8

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

9

Kohler 24 086 09-S

SCREW, CARBURETOR BODY

$2.99

$

In Stock, Qty 8

0

10

Kohler 24 041 09-S

GASKET, CARBURETOR BODY

$31.99

$

In Stock, only 1 left!

0

11

Kohler 24 153 02-S

O-RING, SLOW JET

$6.99

$

In Stock, only 3 left!

0

12

Kohler 24 337 01-S

JET, SLOW

$36.99

$

Usually ships in 2-5 days

0

13

Kohler 24 337 02-S

JET, MAIN

$29.99

$

Usually ships in 2-5 days

0

14

Kohler 24 153 06-S

O-RING, SOLENOID

$4.49

$

In Stock, Qty 7

0

15

Kohler 24 089 11-S

SPRING, IDLE NEEDLE

$5.99

$

Usually ships in 2-5 days

0

16

Kohler 24 368 01-S

NEEDLE, IDLE

$13.99

$

Usually ships in 2-5 days

0

17

Kohler 24 086 07-S

SCREW, SOLENOID

$3.99

$

Usually ships in 2-5 days

0

18

Kohler 24 435 01-S

SOLENOID ASSEMBLY

$217.99

$

In Stock, only 1 left!

0

19

Kohler 24 153 04-S

O-RING, SOLENOID

$4.49

$

In Stock, only 1 left!

0

20

Kohler 24 153 05-S

O-RING, SOLENOID

$4.49

$

In Stock, only 4 left!

0

21

Kohler 24 521 01-S

SEAT, SOLENOID

$37.99

$

Usually ships in 2-5 days

0

22

Kohler 24 086 10-S

SCREW, IDLE

$3.99

$

Usually ships in 2-5 days

0

23

Kohler 24 089 10-S

SPRING, IDLE SPEED ADJ SCREW

$6.99

$

Usually ships in 2-5 days

0

24

Kohler 24 154 01-S

CLIP, INLET NEEDLE VALVE

$7.49

$

Usually ships in 2-5 days

0

25

Kohler 24 462 01-S

VALVE, INLET NEEDLE

$39.99

$

Usually ships in 2-5 days

0

26

Kohler 24 173 02-S

CAP, CHOKE LEVER

$7.99

$

Usually ships in 2-5 days

0

2433710-S

Kohler 24 337 10-S

JET, MAIN - OPTIONAL

Note: NOT ILLUSTRATED

$22.99

$

Usually ships in 2-5 days

0

2475707-S

Kohler 24 757 07-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$95.99

$

In Stock, only 1 left!

0

2475702-S

Kohler 24 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$133.99

$

Usually ships in 2-5 days

0

24755125-S

Kohler 24 755 125-S

KIT, HIGH ALTITUDE (4,000 - 8,000 FT)

Note: NOT ILLUSTRATED

$55.99

$

Usually ships in 2-5 days

0

2475701-S

Kohler 24 757 01-S

KIT, SOLENOID

Note: NOT ILLUSTRATED

$227.99

$

In Stock, only 1 left!

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$112.99

$

Usually ships in 2-5 days

0
