CH18-62553 - Kohler Command PRO Twin Engine, Made for Miller Electric, 18hp, 13.4kW Crankcase 2-24-33 Parts Diagram

Command PRO Twin Engine, Made for Miller Electric, 18hp, 13.4kW

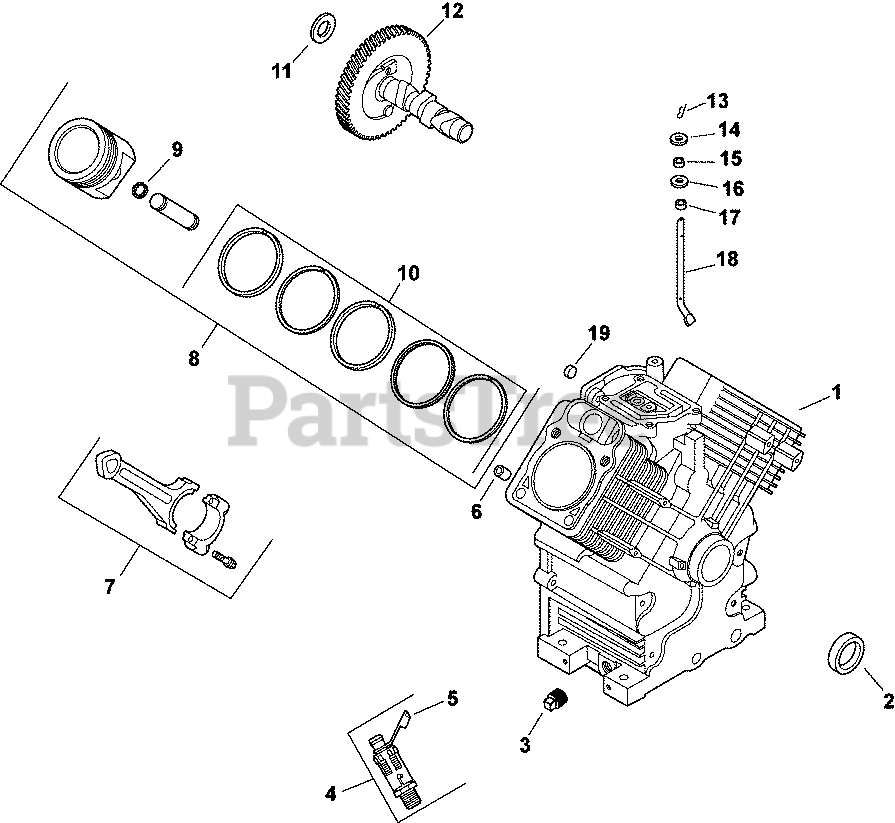

Crankcase 2-24-33 Parts Diagram

  • Title

1

CRANKCASE

Note: (USE: SHORT BLOCK)

$

$

Not available

2

Kohler 24 032 01-S

SEAL, OIL FRONT-USE 24 032 19-S
(Superseded to 24 032 19-S)

$7.49

$

In Stock, Qty 20+

0

3

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

4

Kohler 25 755 14-S

KIT, OIL DRAIN VALVE

Note: (includes 5)

$26.99

$

In Stock, only 1 left!

0

5

Kohler 25 173 14-S

CAP, OIL DRAIN VALVE

$2.49

$

In Stock, only 1 left!

0

6

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

7

Kohler 24 067 16-S

USE 24 067 24-S CONNECTING ROD
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 3 left!

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

8

Kohler 24 874 18-S

PISTON W/RINGS (STYLE A)(.25)-USE 24 874 48-S
(Superseded to 24 874 48-S)

Note: (includes 9,10)

$

$

Not available

2487414-S

Kohler 24 874 14-S

KIT, PISTON W/RING SET & RET-USE 24 874 39-S
(Superseded to 24 874 47-S)

$

$

Not available

2487417-S

Kohler 24 874 17-S

PISTON W/RINGS (STYLE A)(STD)-USE 24 874 46-S
(Superseded to 24 874 46-S)

$

$

Not available

2487419-S

Kohler 24 874 19-S

PISTON W/RINGS (STYLE A)(.50)-USE 24 874 49-S
(Superseded to 24 874 49-S)

$

$

Not available

9

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

10

Kohler 24 108 11-S

RING SET-USE 24 108 22-S
(Superseded to 24 108 22-S)

$

$

Not available

2410812-S

Kohler 24 108 12-S

RING SET-USE 24 108 24-S
(Superseded to 24 108 24-S)

$

$

Not available

2410813-S

Kohler 24 108 13-S

RING SET (.50) - (#2410825S)
(Superseded to 24 108 25-S)

$

$

Not available

11

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242207-S

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 24 012 10-S

KIT, CAMSHAFT USE 24 012 23-S
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

13

Kohler 12 380 04-S

PIN

$2.49

$

Usually ships in 2-5 days

0

14

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 1 left!

0

15

Kohler 52 030 03-S

BEARING

$

$

Not available

16

Kohler X-25-102-S

WASHER, FLAT 1/4"

$2.49

$

In Stock, Qty 5

0

17

Kohler 52 030 04-S

BEARING

$78.99

$

Usually ships in 2-5 days

0

18

Kohler 24 144 10-S

SHAFT - DISCONTINUED

$

$

Not available

19

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0
