CH18-62536 - Kohler Command PRO Twin Engine, Made for Power King, 18hp, 13.4kW Head/Valve/Breather - Style "A" 4-24-3 (TP-2439-C) Rev 10/5/2006 Parts Diagram

Command PRO Twin Engine, Made for Power King, 18hp, 13.4kW

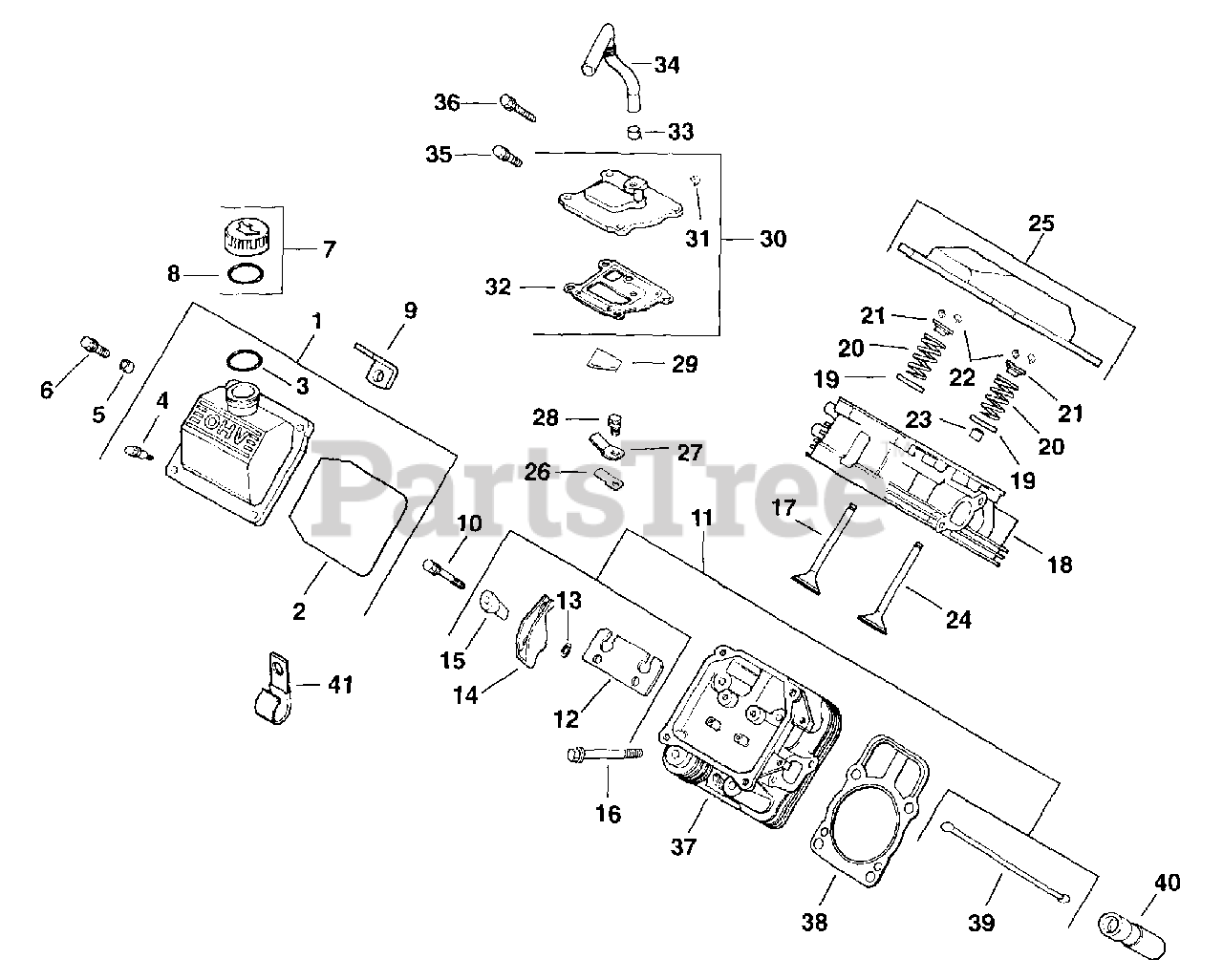

Head/Valve/Breather - Style "A" 4-24-3 (TP-2439-C) Rev 10/5/2006 Parts Diagram

  • Title

1

Kohler 24 755 75-S

VALVE COVER KIT-USE 24 755 140-S
(Superseded to 24 755 140-S)

Note: Includes 2-5

$36.99

$

In Stock, only 1 left!

0

2

Kohler 24 153 12

O-RING - USE 24 153 16
(Superseded to 24 153 16)

$18.99

$

In Stock, only 2 left!

0

3

Kohler 24 153 09-S

O-RING-USE 24 153 32-S
(Superseded to 24 153 32-S)

$2.49

$

In Stock, only 4 left!

0

4

Kohler 24 086 32-S

SCREW, SHOULDER

$2.99

$

In Stock, Qty 11

0

7

Kohler 24 755 46-S

KIT, OIL FILL CAP (YELLOW)

Note: Includes 8

$11.99

$

In Stock, only 1 left!

0

8

Kohler 12 153 03-S

O-RING - USE 25 153 02-S
(Superseded to 25 153 02-S)

$2.49

$

In Stock, only 1 left!

0

10

Kohler M-0640034

Screw, hex. flange M6x1.0x34

$

$

Not available

11

Kohler 24 755 61

KIT - USE 24 755 66
(Superseded to 24 755 66)

Note: Includes 12-15,39. For individual component reference only, before Serial No. 2520800017. Replaced by 24-755-66

$45.99

$

In Stock, only 3 left!

0

12

Kohler 24 146 09

KIT - USE 24 755 66
(Superseded to 24 755 66)

Note: Use before Serial No. 2520800017. Replaced by 24-755-66

$45.99

$

In Stock, only 3 left!

0

13

Kohler M-0631005

WASHER - USE M-631005
(Superseded to M-631005)

Note: Use before Serial No. 2520800017

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 186 03

ROCKER ARM - SEE PARTS BULLETINS 182 FOR TWINS AND 200 FOR SINGLES
(Superseded to 12 755 74-S)

Note: Use before Serial No. 2520800017

$47.99

$

Usually ships in 2-5 days

0

15

Kohler 24 194 02

KIT - USE 24 755 66
(Superseded to 24 755 66)

Note: Use before Serial No. 2520800017. Replaced by 24-755-66

$45.99

$

In Stock, only 3 left!

0

16

Kohler 12 086 16-S

SCREW - USE 62 086 08-S
(Superseded to 62 086 08-S)

$5.99

$

In Stock, Qty 5

0

17

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, only 4 left!

0

17

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

18

Kohler 24 318 09-S

USE 24 318 68-S CYL HEAD ASSY
(Superseded to 24 318 68-S)

$

$

Not available

19

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

20

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 2 left!

0

21

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 5

0

22

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

23

Kohler 24 032 05-S

USE 66 032 05-S SEAL
(Superseded to 66 032 05-S)

$11.99

$

In Stock, only 2 left!

0

24

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 17

0

24

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

25

Kohler 24 755 74-S

ROCKER COVER KIT-USE 24 755 141-S
(Superseded to 24 755 141-S)

Note: Includes 2,4,5

$35.99

$

In Stock, only 2 left!

0

26

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 7

0

27

Kohler 12 018 01-S

RETAINER - UE 66 018 04-S
(Superseded to 66 018 04-S)

$4.99

$

In Stock, Qty 6

0

28

Kohler M-0545010

SCREW - USE M-545010
(Superseded to M-545010)

$4.49

$

In Stock, only 2 left!

0

29

Kohler 24 050 01-S

FILTER, BREATHER-USE 24 050 11-S
(Superseded to 24 050 11-S)

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

Note: Includes 31,32

$31.99

$

In Stock, only 2 left!

0

31

Kohler X-75-23-S

PLUG, CTSK PIPE 1/8" USE 25 139 60-S
(Superseded to 25 139 60-S)

$3.49

$

In Stock, only 2 left!

0

32

Kohler 24 041 23-S

USE 24 041 50-S BREATHR GASKET
(Superseded to 24 041 67-S)

$13.99

$

In Stock, Qty 9

0

33

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, only 2 left!

0

34

Kohler 24 326 06

HOSE - USE 24 326 26
(Superseded to 24 326 26)

$9.99

$

In Stock, Qty 6

0

35

Kohler M-0645020

SCREW - USE M-645020
(Superseded to M-645020)

$2.49

$

In Stock, only 1 left!

0

37

Kohler 24 318 10-S

USE 24 318 71-S CYL HEAD ASSY
(Superseded to 24 318 150-S)

$240.99

$

In Stock, only 1 left!

0

38

Kohler 24 041 08-S

USE 24 841 01-S KIT
(Superseded to 24 841 01-S)

$45.99

$

Usually ships in 2-5 days

0

39

Kohler 24 411 04

KIT - USE 24 755 66
(Superseded to 24 755 66)

Note: Use after Serial No. 2424400007. Replaced by 24-755-66

$45.99

$

In Stock, only 3 left!

0

40

Kohler 12 351 01

LIFTER - USE 12 351 02
(Superseded to 12 351 02)

$23.99

$

In Stock, only 4 left!

0
