CH18-62501 - Kohler Command PRO Twin Engine, Basic Version, 18hp, 13.4kW Air Intake Group 10-24-2 (TP-2439-C) Parts Diagram

Command PRO Twin Engine, Basic Version, 18hp, 13.4kW

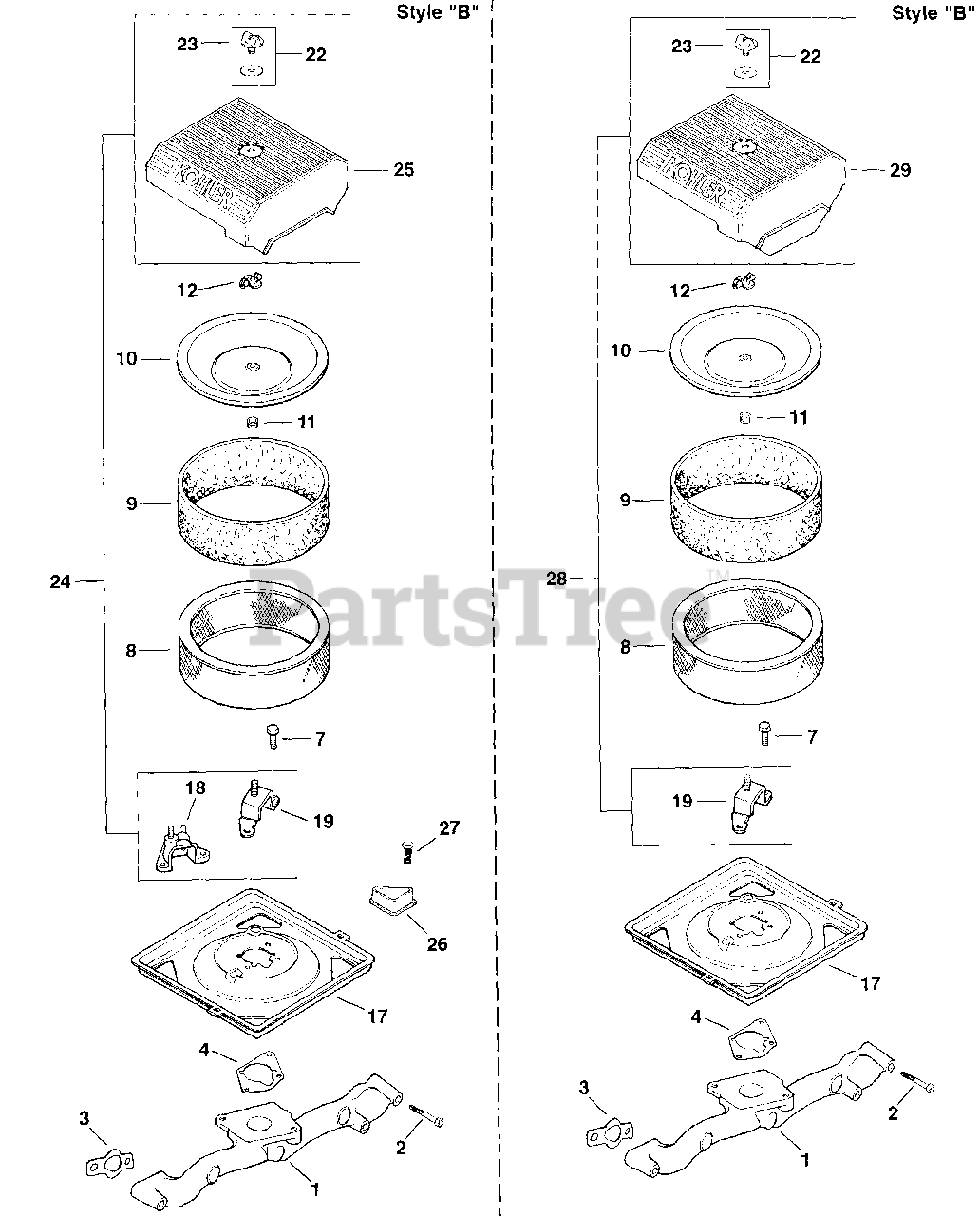

Air Intake Group 10-24-2 (TP-2439-C) Parts Diagram

  • Title

1

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$229.99

$

Usually ships in 2-5 days

0

2

Kohler M-0639055

Screw, hex. flange M6x1.0x55
(Superseded to M-639055)

$2.49

$

In Stock, Qty 20+

0

3

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 9

0

4

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

7

Kohler M-0639016

SCREW - USE M-639016
(Superseded to M-639016)

$2.49

$

In Stock, Qty 7

0

8

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 20+

0

9

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

Usually ships in 2-5 days

0

10

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

11

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 9

0

12

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 4 left!

0

18

Kohler 24 109 03

KIT - USE 24 755 86
(Superseded to 24 755 86)

Note: 27.5 mm stud CV18-25

$140.99

$

Usually ships in 2-5 days

0

19

Kohler 24 126 21-S

BRACKET,AIR CLEANERBASE-USE 24 126 206-S
(Superseded to 24 126 206-S)

Note: 30 mm stud CH18-22

$10.99

$

In Stock, Qty 7

0

22

Kohler 24 755 91

KIT - USE 54 755 01
(Superseded to 54 755 01)

Note: Includes 23

$9.49

$

In Stock, Qty 6

0

24

Kohler 24 743 06-S

KIT, AIR CLEANER COVER

Note: Includes 18,19,22,23,25

$90.99

$

Usually ships in 2-5 days

0

25

Kohler 24 096 26-S

COVER, AIR CLEANER

$58.99

$

Usually ships in 2-5 days

0
