CH15-44548 - Kohler Command PRO Single Engine, Made for Dynamic Power, 15hp, 11.2kW Fuel System 8-27-222 Parts Diagram

Command PRO Single Engine, Made for Dynamic Power, 15hp, 11.2kW

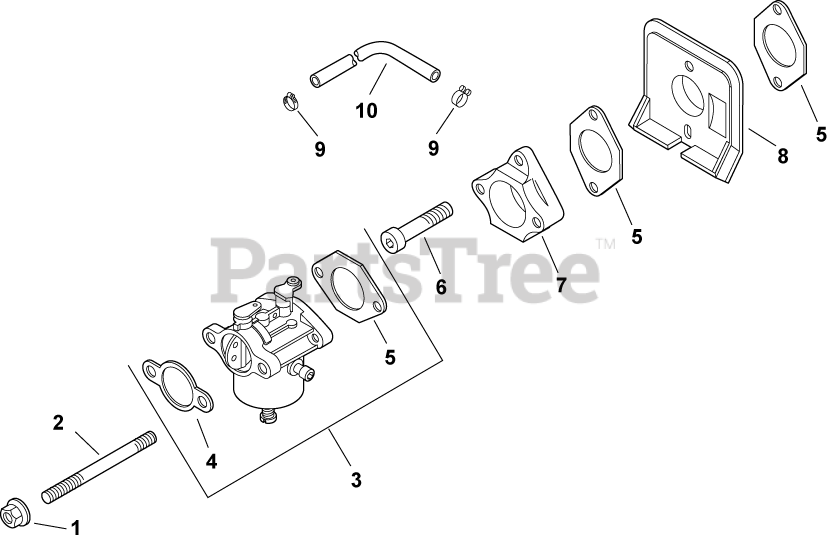

Fuel System 8-27-222 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 7

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 75-S

KIT, CARBURETOR W/GASKET - (#DSC)

Note: (includes 4,5)

$

$

Not available

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

6

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

8

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

9

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

10

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0
