CH15-44547 - Kohler Command PRO Single Engine, Made for Medart, 15hp, 11.2kW Starting System 7-27-62 Parts Diagram

Command PRO Single Engine, Made for Medart, 15hp, 11.2kW

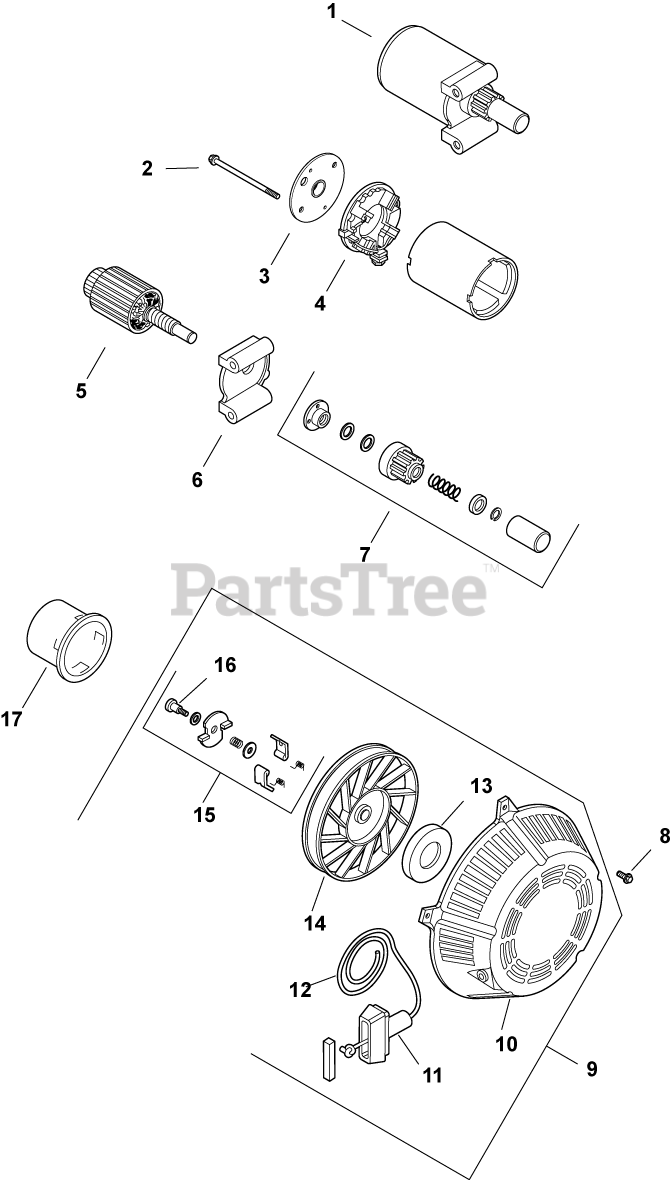

Starting System 7-27-62 Parts Diagram

  • Title

1

Kohler 12 098 21-S

ELECTRIC STARTER-BENDIX DRIVE

$303.99

$

In Stock, only 1 left!

0

2

Kohler 12 211 01-S

BOLT, THRU #10-24X4 13/32" - DISCONTINUED

$

$

Not available

3

Kohler 12 227 14-S

CAP - (#DSC)

$

$

Not available

4

Kohler 12 221 02-S

BRUSH KIT

$

$

Not available

5

Kohler 12 170 05-S

ARMATURE - DISCONTINUED

$

$

Not available

6

Kohler 12 227 19-S

CAP, DRIVE END - (#DSC)

$

$

Not available

7

Kohler 12 755 53-S

KIT, DRIVE

$169.99

$

Usually ships in 2-5 days

0

8

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 1 left!

0

9

Kohler 12 165 01-S

STARTER ASSY,RETRACTABLE-USE 12 165 03-S
(Superseded to 24 165 02-S)

Note: (includes 10-16)

$76.99

$

In Stock, only 2 left!

0

10

Kohler 12 081 01-S

HOUSING - DISCONTINUED

$

$

Not available

11

Kohler 25 166 01-S

HANDLE, RECOIL STARTER

$15.99

$

In Stock, Qty 10

0

12

Kohler 12 160 01-S

ROPE - DISCONTINUED

$

$

Not available

13

Kohler 12 089 06-S

SPRING & KEEPER - (#DSC)

$

$

Not available

14

Kohler 12 093 01-S

PULLEY - (#DSC)

$

$

Not available

15

Kohler 12 757 06-S

KIT, DOG REPAIR - (#DSC)

$

$

Not available

16

Kohler 41 086 09-S

SCREW - DISCONTINUED

$

$

Not available

17

Kohler 15 109 01-S

CUP

$21.99

$

In Stock, only 1 left!

0

2511325-S

Kohler 25 113 25-S

DECAL, MEDIUM ROUND

$3.49

$

Usually ships in 2-5 days

0
