CH15-44532 - Kohler Command PRO Single Engine, Made for Vermeer, 15hp, 11.2kW Engine Controls 9-27-67 Parts Diagram

Command PRO Single Engine, Made for Vermeer, 15hp, 11.2kW

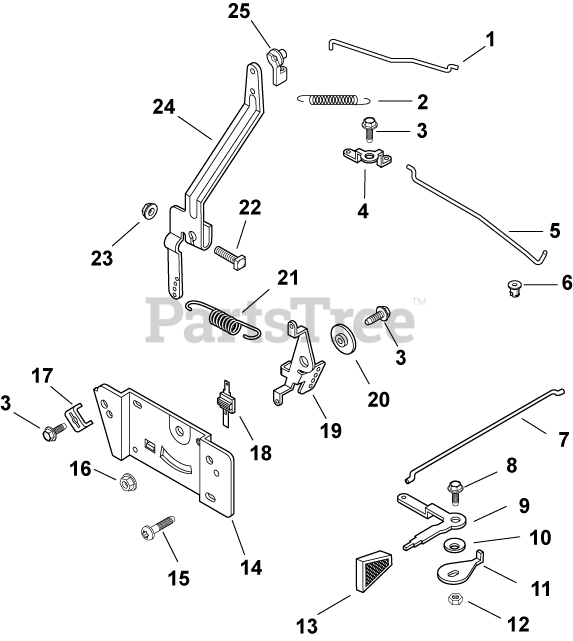

Engine Controls 9-27-67 Parts Diagram

  • Title
1

$21.99

$

In Stock, only 1 left!

0

2

$13.99

$

In Stock, only 1 left!

0

3

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

$13.99

$

In Stock, only 1 left!

0

5

Kohler 12 079 08-S

LINKAGE, CHOKE

$12.99

$

In Stock, only 1 left!

0

6

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

7

$15.99

$

In Stock, only 1 left!

0

8

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

9

Kohler 12 090 16-S

LEVER, CHOKE

$10.99

$

Usually ships in 2-5 days

0

10

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

11

Kohler 12 448 01-S

TAB - DISCONTINUED

$

$

Not available

12

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

$

$

Not available

14

Kohler 12 146 05-S

PLATE - DISCONTINUED

$

$

Not available

15

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

16

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

17

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

18

$14.99

$

In Stock, only 1 left!

0

$28.99

$

Usually ships in 2-5 days

0

20

Kohler 12 112 07-S

SPACER, CONTROL ASSEMBLY

$7.99

$

Usually ships in 2-5 days

0

21

$8.49

$

In Stock, Qty 10

0

22

Kohler 12 086 41-S

SCREW, SQUARE HEAD

$2.49

$

In Stock, only 3 left!

0

23

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

24

Kohler 12 090 19-S

LEVER, GOVERNOR - USE 12 090 40-S
(Superseded to 12 090 40-S)

$48.99

$

Usually ships in 2-5 days

0

25

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

1211316-S

Kohler 12 113 16-S

DECAL, CHOKE (WHITE)

Note: NOT ILLUSTRATED

$4.49

$

Usually ships in 2-5 days

0
