CH15-44525 - Kohler Command PRO Single Engine, Made for Hydro Tek, 15hp, 11.2kW Head/Valve/Breather Parts Diagram

Command PRO Single Engine, Made for Hydro Tek, 15hp, 11.2kW

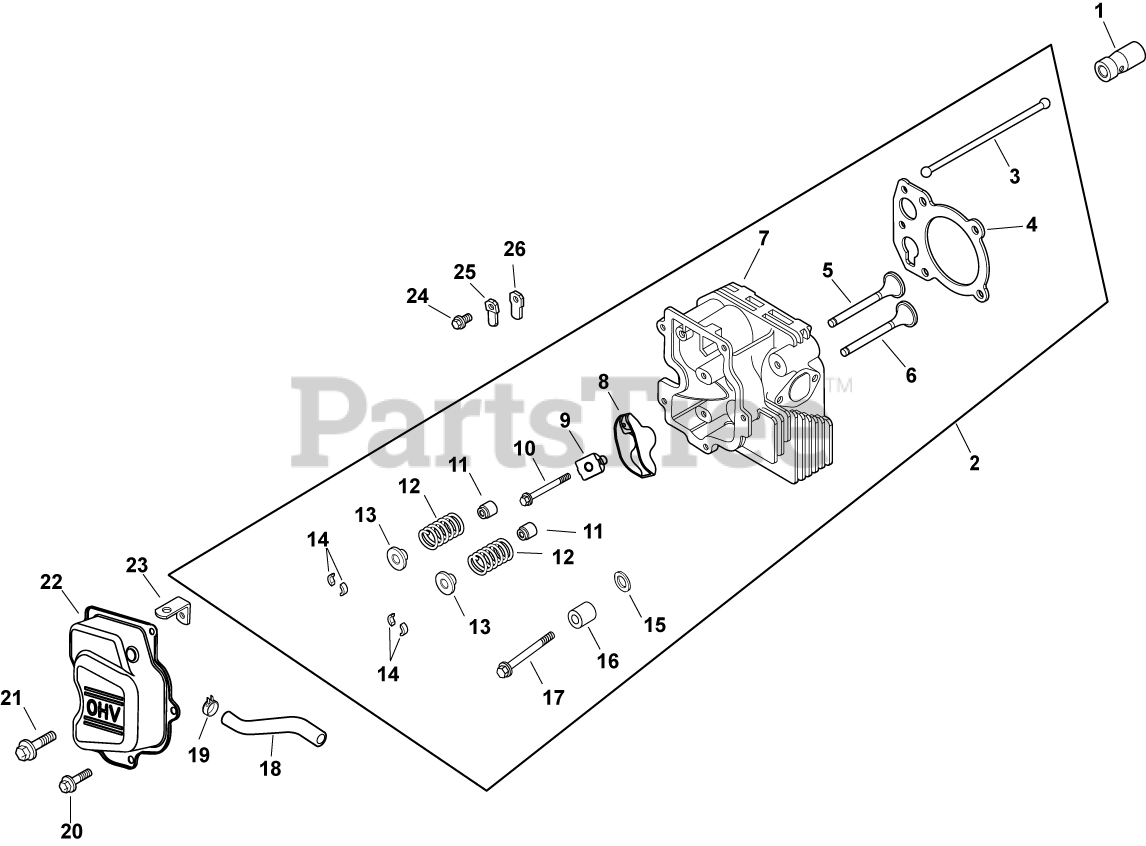

Head/Valve/Breather Parts Diagram

  • Title

1

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

$23.99

$

In Stock, Qty 14

0

2

Kohler 12 755 97-S

KIT, CYLINDER HEAD - DISCONTINUED

Note: (includes 3-17)

$

$

Not available

3

Kohler 12 411 04-S

ROD, PUSH

$4.49

$

In Stock, only 2 left!

0

4

Kohler 12 041 10-S

GASKET, CYLINDER HEAD

$17.99

$

In Stock, only 1 left!

0

5

Kohler 12 016 01-S

VALVE, EXHAUST

$54.99

$

Usually ships in 2-5 days

0

6

Kohler 12 017 01-S

VALVE, INTAKE

$32.99

$

Usually ships in 2-5 days

0

7

Kohler 12 318 50-S

HEAD ASSEMBLY, CYLINDER

$273.99

$

Usually ships in 2-5 days

0

8

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 3 left!

0

9

Kohler 12 599 03-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, only 1 left!

0

10

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 19

0

11

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

Usually ships in 2-5 days

0

12

Kohler 12 089 34-S

SPRING, VALVE

$10.99

$

In Stock, only 2 left!

0

13

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, Qty 9

0

14

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, only 3 left!

0

15

Kohler 12 468 05-S

WASHER, FLAT 13/32"

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 12 112 13-S

SPACER, HEAD BOLT EXHAUST PORT

$10.99

$

Usually ships in 2-5 days

0

17

Kohler 20 086 02-S

SCREW, CYLINDER HEAD (M10 X 80)

$3.99

$

In Stock, Qty 17

0

18

Kohler 12 326 19-S

HOSE, BREATHER - USE 12 326 27-S
(Superseded to 12 326 27-S)

$21.99

$

In Stock, only 2 left!

0

19

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

20

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

21

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

22

Kohler 12 096 47-S

COVER, ROCKER

$18.99

$

In Stock, only 1 left!

0

23

Kohler 12 445 05-S

USE 25 445 02-S LIFTING STRAP
(Superseded to 25 445 02-S)

$2.99

$

In Stock, only 1 left!

0

24

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

25

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, Qty 8

0

26

Kohler 12 402 02-S

REED, BREATHER

$3.99

$

In Stock, Qty 8

0

1201602-S

Kohler 12 016 02-S

VALVE, EXHAUST (.25 MM)

Note: NOT ILLUSTRATED

$

$

Not available

1201702-S

Kohler 12 017 02-S

VALVE, INTAKE (.25 MM)

Note: NOT ILLUSTRATED

$30.99

$

In Stock, only 1 left!

0

1204101-S

Kohler 12 041 01-S

GASKET, CARBURETOR

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

1204102-S

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

Note: NOT ILLUSTRATED

$2.99

$

In Stock, Qty 7

0

1204103-S

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

Note: NOT ILLUSTRATED

$7.49

$

In Stock, Qty 11

0
