CH15-44523 - Kohler Command PRO Single Engine, Made for Cub Cadet, 15hp, 11.2kW Oil Pan/Lubrication 3-27-44 Parts Diagram

Command PRO Single Engine, Made for Cub Cadet, 15hp, 11.2kW

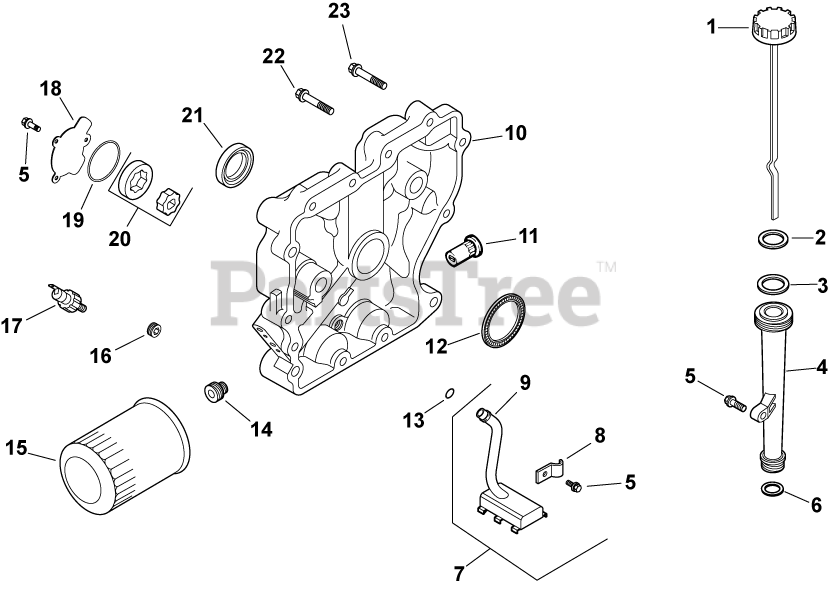

Oil Pan/Lubrication 3-27-44 Parts Diagram

  • Title

1

Kohler 12 038 08-S

DIPSTICK

$31.99

$

Usually ships in 2-5 days

0

2

Kohler 12 153 03-S

O-RING - USE 25 153 02-S
(Superseded to 25 153 02-S)

$2.49

$

In Stock, only 1 left!

0

3

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

4

Kohler 12 123 22-S

TUBE, OIL FILL - DISCONTINUED

$

$

Not available

5

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

6

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 10

0

7

Kohler 12 755 73-S

KIT, OIL PICK-UP

Note: (Includes 5[qty.3],8,9)

$88.99

$

Usually ships in 2-5 days

0

8

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

9

Kohler 25 381 01-S

PICK-UP, OIL SCREEN

$53.99

$

Usually ships in 2-5 days

0

10

Kohler 12 009 51-S

CLOSURE PLATE ASSEMBLY

Note: Includes 5, 10-12, 18-20)

$

$

Not available

11

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

12

Kohler 12 030 05-S

BEARING, CRANKSHAFT

$23.99

$

Usually ships in 2-5 days

0

13

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 1 left!

0

14

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

15

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

16

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

17

Kohler 25 099 24-S

SWITCH, PRESSURE (CLOSED)-USE 25 099 27-
(Superseded to 25 099 27-S)

$15.99

$

In Stock, Qty 5

0

18

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

19

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

20

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

21

Kohler 12 032 03-S

SEAL, OIL

Note: PTO end

$9.99

$

Usually ships in 2-5 days

0

22

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

23

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

No Description

$

$

Not available
