CH15-44522 - Kohler Command PRO Single Engine, Made for Hydralada, 15hp, 11.2kW Oil Pan/Lubrication 3-27-165 Parts Diagram

Command PRO Single Engine, Made for Hydralada, 15hp, 11.2kW

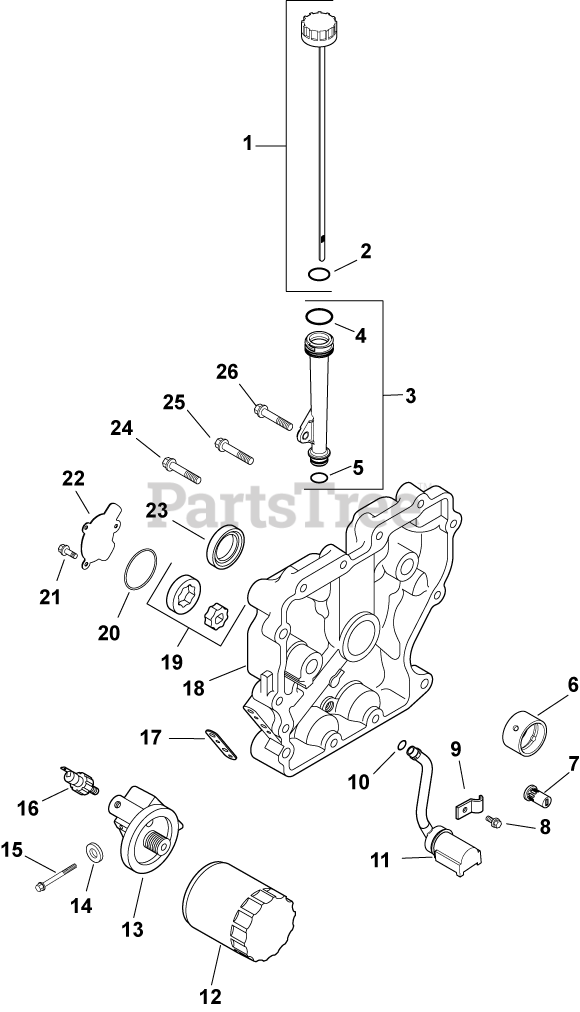

Oil Pan/Lubrication 3-27-165 Parts Diagram

  • Title

1

Kohler 12 038 23-S

KIT, OIL FILL CAP ASSEMBLY

Note: (Includes 2)

$19.99

$

Usually ships in 2-5 days

0

2

Kohler 12 153 03-S

O-RING - USE 25 153 02-S
(Superseded to 25 153 02-S)

$2.49

$

In Stock, only 1 left!

0

3

Kohler 12 123 34-S

TUBE, OIL FILL - PLASTIC
(Superseded to 12 755 113-S)

$

$

Not available

4

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, Qty 8

0

5

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 10

0

6

Kohler 12 030 05-S

BEARING, CRANKSHAFT

$23.99

$

Usually ships in 2-5 days

0

7

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

8

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 1 left!

0

11

Kohler 12 755 73-S

KIT, OIL PICK-UP

$88.99

$

Usually ships in 2-5 days

0

12

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

13

Kohler 12 029 01-S

ADAPTER - DISCONTINUED

$

$

Not available

14

Kohler X-25-12-S

WASHER

$3.49

$

In Stock, only 2 left!

0

15

Kohler M-651060-S

SCREW, FLG M6X1.0X60

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 24 099 03-S

SENSOR, OIL PSI
(Superseded to 24 755 425-S)

$29.99

$

In Stock, only 1 left!

0

17

Kohler 12 041 07-S

GASKET, OIL FILTER ADAPTER

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 12 009 36-S

CLOSURE PLATE ASSEMBLY - DISCONTINUED

$

$

Not available

19

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

20

Kohler 12 153 06-S

O-RING (2.5" DIA)

$3.99

$

In Stock, only 4 left!

0

21

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

22

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

23

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

24

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

25

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

26

Kohler 24 086 13-S

SCREW, SPECIAL HEAD

$2.99

$

Usually ships in 2-5 days

0
