CH15-44521 - Kohler Command PRO Single Engine, Made for C.F. Struck, 15hp, 11.2kW Engine Controls 9-27-62 Parts Diagram

Command PRO Single Engine, Made for C.F. Struck, 15hp, 11.2kW

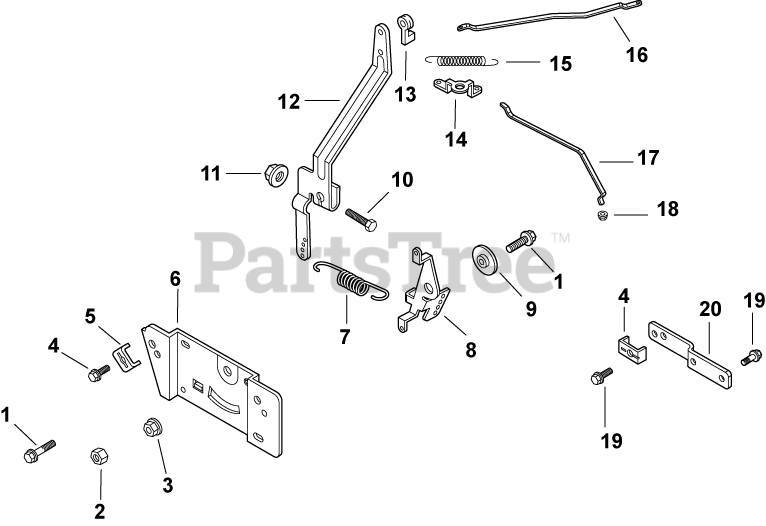

Engine Controls 9-27-62 Parts Diagram

  • Title

1

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

2

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

3

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

4

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

5

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

6

Kohler 12 146 05-S

PLATE - DISCONTINUED

$

$

Not available

7

Kohler 12 089 17-S

SPRING

$8.49

$

In Stock, Qty 8

0

8

Kohler 12 090 13-S

LEVER

$28.99

$

Usually ships in 2-5 days

0

9

Kohler 12 112 07-S

SPACER, CONTROL ASSEMBLY

$7.99

$

Usually ships in 2-5 days

0

10

Kohler 12 086 41-S

SCREW, SQUARE HEAD

$2.49

$

In Stock, only 3 left!

0

11

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

12

Kohler 12 090 19-S

LEVER, GOVERNOR - USE 12 090 40-S
(Superseded to 12 090 40-S)

$48.99

$

Usually ships in 2-5 days

0

13

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 3 left!

0

14

Kohler 12 090 14-S

LEVER

$13.99

$

In Stock, only 1 left!

0

15

Kohler 230117-S

SPRING

$13.99

$

Usually ships in 2-5 days

0

16

Kohler 12 079 04-S

LINKAGE

$21.99

$

In Stock, only 1 left!

0

17

Kohler 12 079 08-S

LINKAGE, CHOKE

$12.99

$

In Stock, only 1 left!

0

18

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

19

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 1 left!

0

20

Kohler 12 126 15-S

BRACKET

$10.99

$

Usually ships in 2-5 days

0

1215802-S

Kohler 12 158 02-S

BUSHING

Note: NOT ILLUSTRATED

$

$

Not available
