CH15-44516 - Kohler Command PRO Single Engine, Made for Aksa, 15hp, 11.2kW Ignition/Electrical 5-27-225 Parts Diagram

Command PRO Single Engine, Made for Aksa, 15hp, 11.2kW

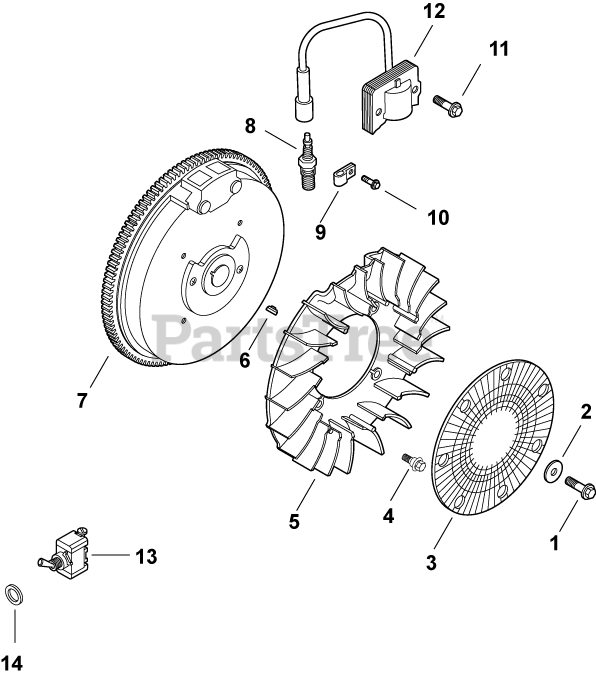

Ignition/Electrical 5-27-225 Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

3

Kohler 12 162 03-S

SCREEN

$12.99

$

Usually ships in 2-5 days

0

4

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

5

Kohler 12 157 03-S

FAN - DISCONTINUED

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 025 84-S

FLYWHEEL ASSY PAINTED - USE 12 025 74-S
(Superseded to 12 025 74-S)

$393.99

$

Usually ships in 2-5 days

0

8

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

9

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

10

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

11

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

12

Kohler 12 584 05-S

MODULE, IGNITION

$125.99

$

In Stock, only 1 left!

0

13

Kohler 151510-S

SWITCH - DISCONTINUED

$

$

Not available

14

Kohler X-25-34-S

WASHER

$3.49

$

Usually ships in 2-5 days

0

25086110-S

Kohler 25 086 110-S

SCREW, WSH HD TAP #10-32x9/16"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1217619-S

Kohler 12 176 19-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$

$

Not available

1251817-S

Kohler 12 518 17-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1251813-S

Kohler 12 518 13-S

LEAD, GROUND - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

4711333-S

Kohler 47 113 33-S

DECAL, TOGGLE SWITCH

Note: NOT ILLUSTRATED

$20.99

$

Usually ships in 2-5 days

0
