CH14-1842 - Kohler Command PRO Single Engine, Made for Power Curvers, 14hp Oil Pan/Lubrication 3-27-31 Parts Diagram

Command PRO Single Engine, Made for Power Curvers, 14hp

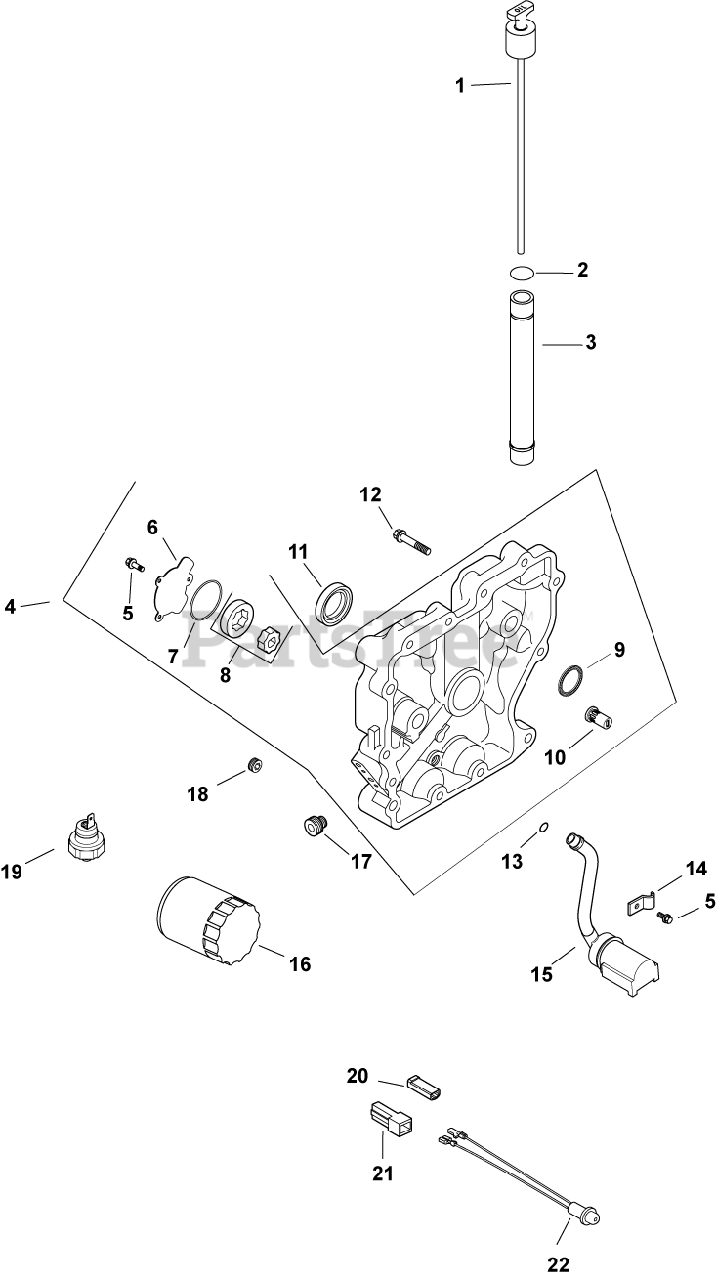

Oil Pan/Lubrication 3-27-31 Parts Diagram

  • Title

1

Kohler 47 038 26-S

DIPSTICK

$

$

Not available

2

Kohler 41 153 01-S

O-RING

$5.49

$

In Stock, only 1 left!

0

3

Kohler 24 123 11-S

KIT, OIL FILL TUBE - METAL

$36.99

$

In Stock, only 1 left!

0

4

Kohler 12 009 49-S

CLOSURE PLATE ASSEMBLY

Note: (includes 5 [qty 3], 6-10)

$494.99

$

Usually ships in 2-5 days

0

5

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

6

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

7

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

8

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

9

Kohler 12 030 05-S

BEARING, CRANKSHAFT

$23.99

$

Usually ships in 2-5 days

0

10

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

11

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

12

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

13

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 2 left!

0

14

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

15

Kohler 12 755 73-S

KIT, OIL PICK-UP

$88.99

$

Usually ships in 2-5 days

0

16

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

17

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

18

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

19

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

20

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

21

Kohler 25 155 03-S

CONNECTOR

$4.49

$

Usually ships in 2-5 days

0

22

Kohler 25 352 01-S

LIGHT

$57.99

$

Usually ships in 2-5 days

0
