CH14-1839 - Kohler Command PRO Single Engine, Made for Deamant Boart, 14hp Exhaust 11-27-30 Parts Diagram

Command PRO Single Engine, Made for Deamant Boart, 14hp

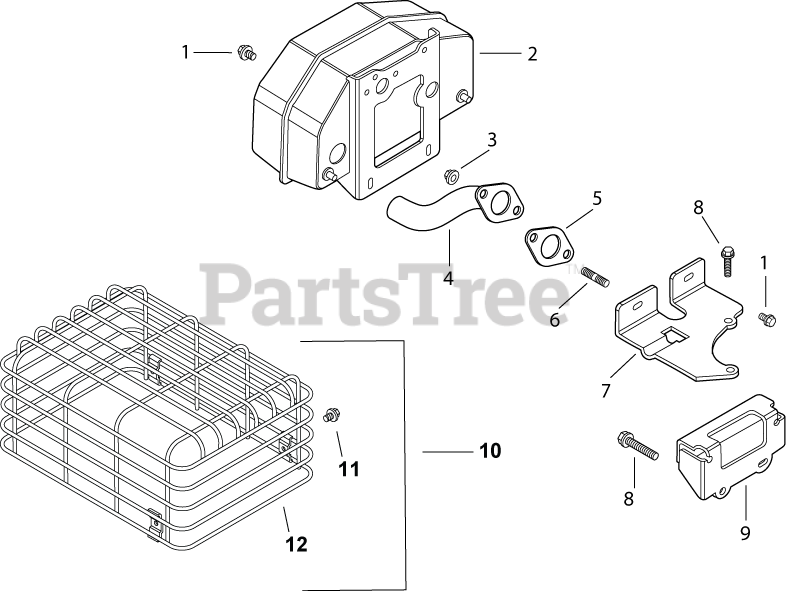

Exhaust 11-27-30 Parts Diagram

  • Title

1

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

2

Kohler 12 068 11-S

MUFFLER

$463.99

$

Usually ships in 2-5 days

0

3

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

4

Kohler 12 382 03-S

PIPE, INLET

$37.99

$

Usually ships in 2-5 days

0

5

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 11

0

6

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

7

Kohler 12 126 32-S

BRACKET, MUFFLER

$32.99

$

Usually ships in 2-5 days

0

8

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 3 left!

0

9

Kohler 12 126 34-S

BRACKET, MUFFLER

$72.99

$

Usually ships in 2-5 days

0

10

Kohler 12 755 26-S

KIT, MUFFLER GUARD

Note: (includes 11 [qty 3], 12 & M-550010-S [qty 3])

$151.99

$

Usually ships in 2-5 days

0

11

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

12

Kohler 12 314 02-S

GUARD, MUFFLER

$115.99

$

Usually ships in 2-5 days

0

M-550010-S

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

1211220-S

Kohler 12 112 20-S

SPACER

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 1 left!

0
