CH14-1837 - Kohler Command PRO Single Engine, Made for Yanmar, 14hp Ignition/Electrical 5-27-187 Parts Diagram

Command PRO Single Engine, Made for Yanmar, 14hp

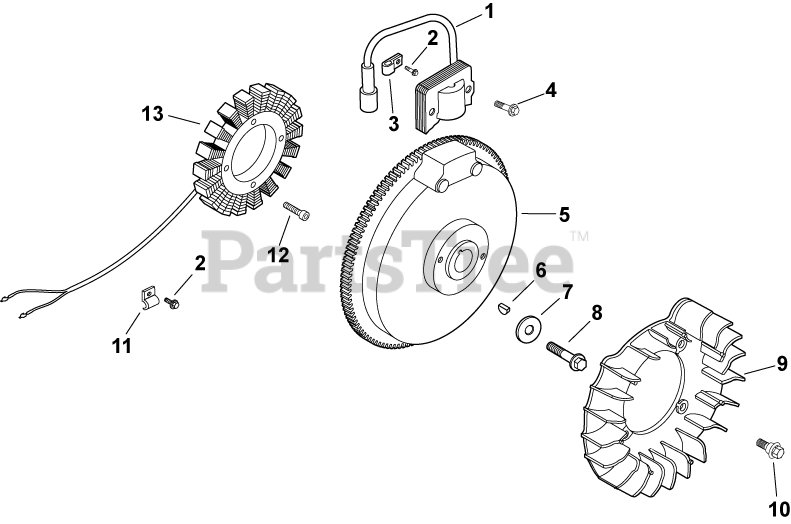

Ignition/Electrical 5-27-187 Parts Diagram

  • Title

1

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

In Stock, only 1 left!

0

2

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

3

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler 12 025 41-S

FLYWHEEL - DISCONTINUED

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

9

Kohler 12 157 06-S

FAN

$

$

Not available

10

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

11

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

12

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

13

Kohler 12 085 06-S

STATOR

$117.99

$

Usually ships in 2-5 days

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1251834-S

Kohler 12 518 34-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available
