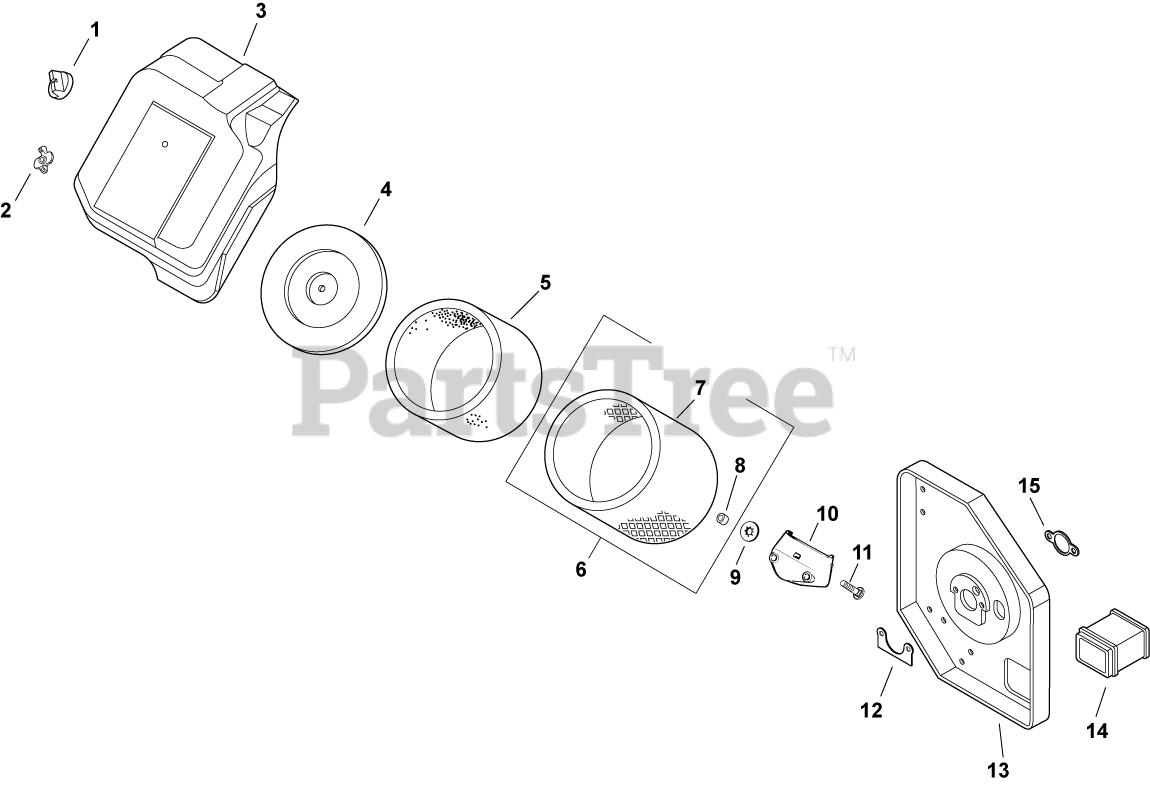

CH14-1837 - Kohler Command PRO Single Engine, Made for Yanmar, 14hp Air Intake/Filtration 10-27-28 Parts Diagram

Command PRO Single Engine, Made for Yanmar, 14hp

Air Intake/Filtration 10-27-28 Parts Diagram

  • Title

1

Kohler 25 341 03-S

KNOB, COVER
(Superseded to 25 341 04-S)

$7.99

$

Usually ships in 2-5 days

0

2

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

3

Kohler 12 096 41-S

COVER, AIR CLEANER BASE

$54.99

$

In Stock, only 1 left!

0

4

Kohler 12 096 37-S

COVER, AIR CLEANER

$37.99

$

In Stock, only 1 left!

0

5

Kohler 52 083 01-S

PRE-CLEANER

$6.99

$

In Stock, Qty 5

0

6

Kohler 12 743 09-S

KIT, AIR CLEANER ELEMENT

Note: (includes 7,8)

$30.99

$

In Stock, only 1 left!

0

7

Kohler 47 083 01-S

ELEMENT, AIR CLEANER (KM) - Also available Retail Packaged 47 883 01-S1 Air Filter Kit

$23.99

$

In Stock, only 1 left!

0

8

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 7

0

9

Kohler 12 018 06-S

RETAINER, RING

$

$

Not available

10

Kohler 12 109 08-S

CUP, FUEL SPITBACK

$19.99

$

In Stock, only 1 left!

0

11

Kohler 12 211 02-S

BOLT

$

$

Not available

12

Kohler 12 041 09-S

GASKET, AIR CLEANER BASE

$3.99

$

In Stock, only 2 left!

0

13

Kohler 12 094 06-S

BASE, AIR CLEANER

$43.99

$

Usually ships in 2-5 days

0

14

Kohler 12 123 07-S

TUBE

$13.99

$

Usually ships in 2-5 days

0

15

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

1275584-S

Kohler 12 755 84-S

KIT, FUEL RECOVERY

Note: NOT ILLUSTRATED (includes 2-4, 8-12, 15)

$

$

Not available
