CH14-1831 - Kohler Command PRO Single Engine, Made for Koyker, 14hp Fuel System 8-27-100 Parts Diagram

Command PRO Single Engine, Made for Koyker, 14hp

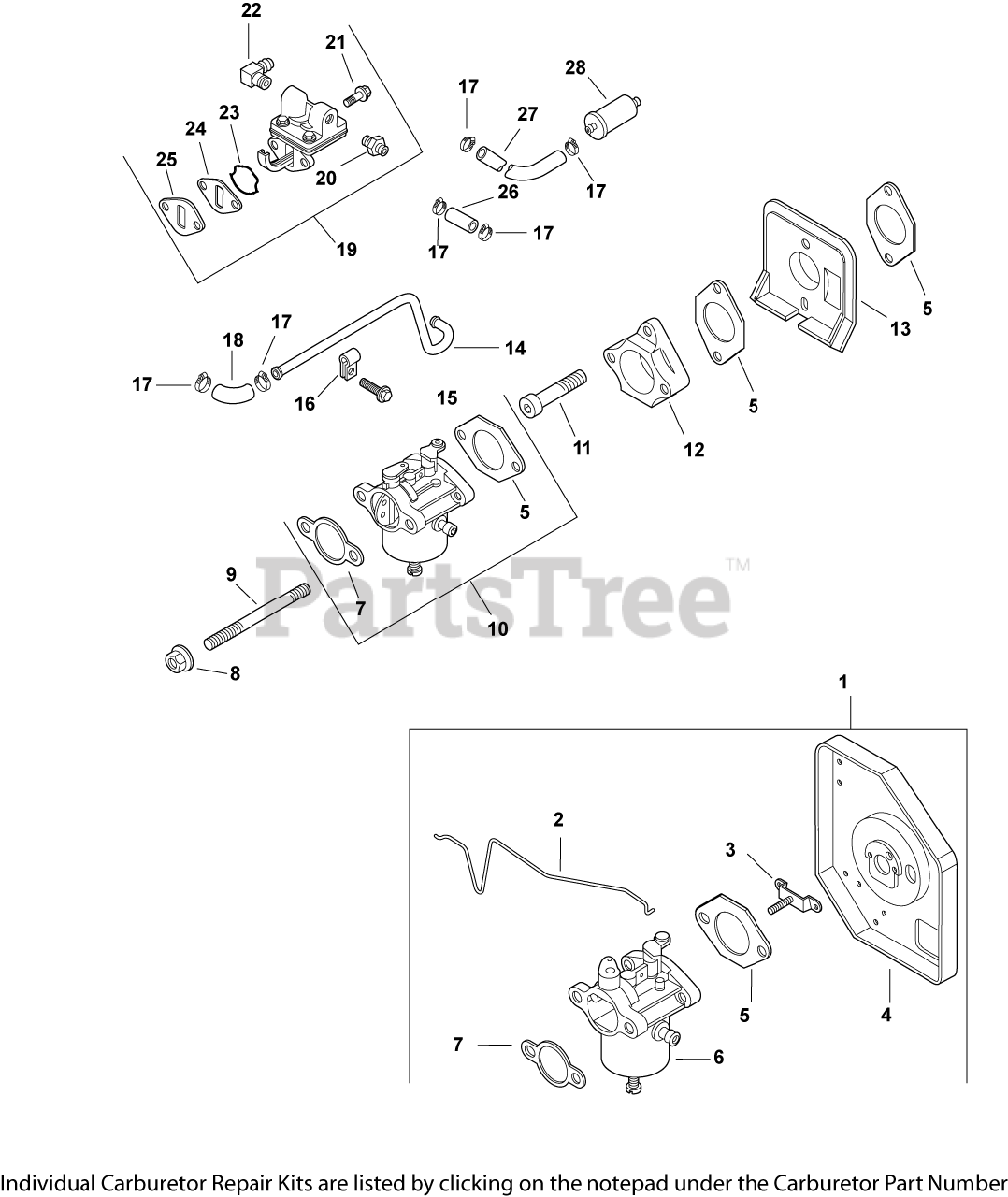

Fuel System 8-27-100 Parts Diagram

  • Title

1

Kohler 12 853 32-S

KIT, CARB. RETROFIT

Note: (includes 2-4, 5 [qty 1], 6,7) (Before S/N 3222700011)

$224.99

$

Usually ships in 2-5 days

0

2

Kohler 12 079 08-S

LINKAGE, CHOKE

$12.99

$

In Stock, only 1 left!

0

3

Kohler 12 126 46-S

BRACKET, AIR CLEANER

$121.99

$

Usually ships in 2-5 days

0

4

Kohler 12 094 06-S

BASE, AIR CLEANER

$43.99

$

Usually ships in 2-5 days

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 853 80-S

CARBURETOR W/GASEKTS - USE 12 853 139-S
(Superseded to 12 853 139-S)

Note: (includes 5 [qty 1], 7)

$269.99

$

In Stock, only 1 left!

0

7

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

8

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

9

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

10

Kohler 12 853 139-S

KIT, CARBURETOR w/GASKETS

Note: (includes 5 [qty 1], 7) (After S/N 3222700001)

$269.99

$

In Stock, only 1 left!

0

11

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

13

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

14

Kohler 12 353 11-S

LINE, FUEL - DISCONTINUED

$

$

Not available

15

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

16

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

18

Kohler 25 111 36-S

HOSE, FUEL LOW-PERMEATION

$7.99

$

In Stock, only 1 left!

0

19

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 20-25)

$48.99

$

In Stock, Qty 6

0

20

Kohler 25 326 03-S

CONNECTOR

$3.99

$

In Stock, only 1 left!

0

21

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

22

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0

23

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, only 2 left!

0

24

Kohler 12 112 05-S

SPACER, FUEL PUMP

$7.49

$

In Stock, only 2 left!

0

25

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, only 1 left!

0

26

Kohler 12 353 01-S

LINE - DISCONTINUED

$

$

Not available

27

Kohler 25 353 02-S

LINE - DISCONTINUED

$

$

Not available

28

Kohler 25 050 07-S

FILTER, FUEL

$10.99

$

In Stock, Qty 6

0
