CH14-1827 - Kohler Command PRO Single Engine, Made for Hydro Tek, 14hp Fuel System 8-27-111 Parts Diagram

Command PRO Single Engine, Made for Hydro Tek, 14hp

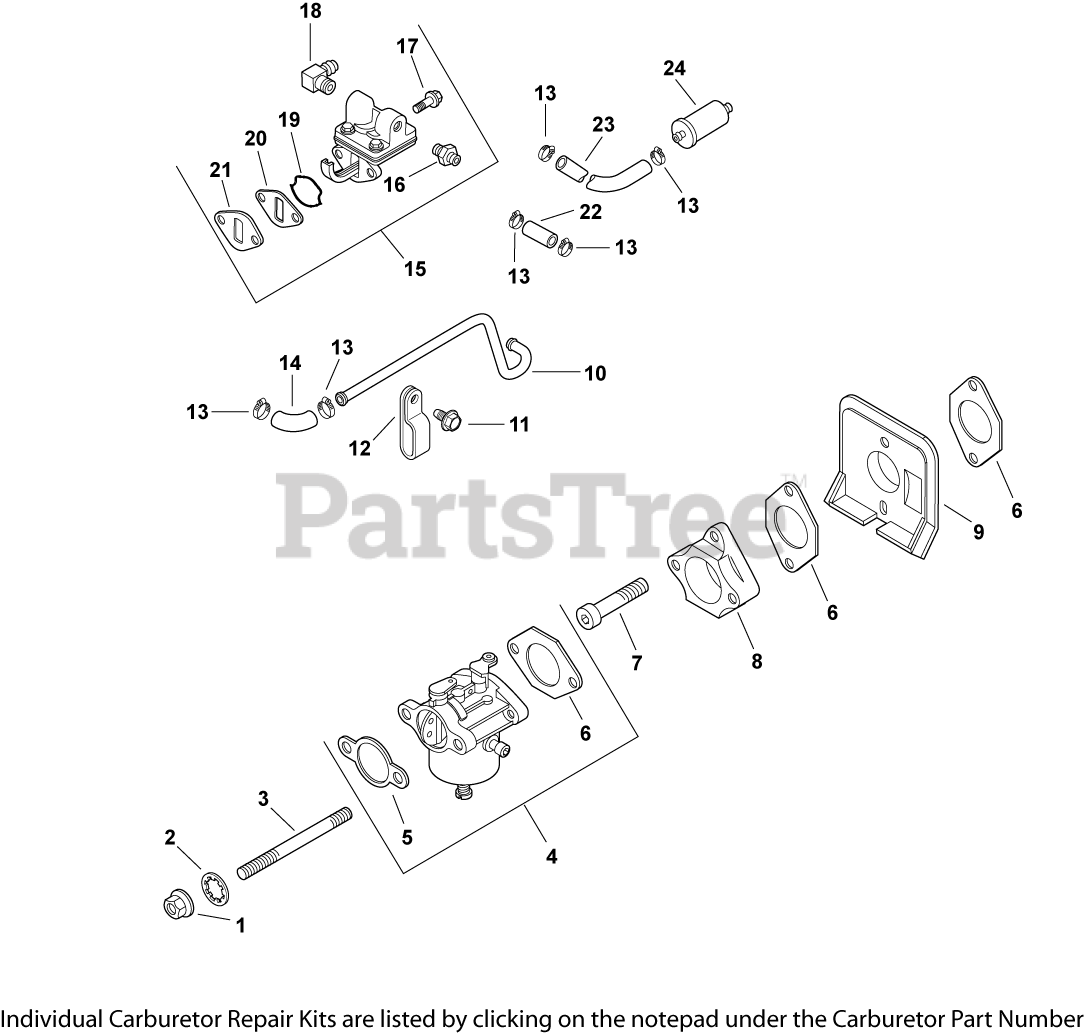

Fuel System 8-27-111 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

2

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

4

Kohler 12 853 93-S

KIT, CARBURETOR

Note: (includes 5,6)

$269.99

$

In Stock, only 1 left!

0

5

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

6

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

7

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

9

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

10

Kohler 12 353 11-S

LINE, FUEL - DISCONTINUED

$

$

Not available

11

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

12

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

14

Kohler 25 111 36-S

HOSE, FUEL LOW-PERMEATION

$7.99

$

In Stock, only 1 left!

0

15

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (Iincludes 16-21 & 25 141 06-S)

$48.99

$

In Stock, Qty 6

0

16

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

Usually ships in 2-5 days

0

17

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

18

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$6.49

$

In Stock, only 1 left!

0

19

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, only 2 left!

0

20

Kohler 12 112 05-S

SPACER, FUEL PUMP

$7.49

$

In Stock, only 2 left!

0

21

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, only 1 left!

0

22

Kohler 12 353 01-S

LINE - DISCONTINUED

$

$

Not available

23

Kohler 25 353 02-S

LINE - DISCONTINUED

$

$

Not available

24

Kohler 25 050 07-S

FILTER, FUEL

$10.99

$

In Stock, Qty 7

0

M-561010-S

Kohler M-561010-S

SCREW, THRD FRM M5X0.8X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
