CH14-1824 - Kohler Command PRO Single Engine, Made for Winpower, 14hp Oil Pan/Lubrication 3-27-47 Parts Diagram

Command PRO Single Engine, Made for Winpower, 14hp

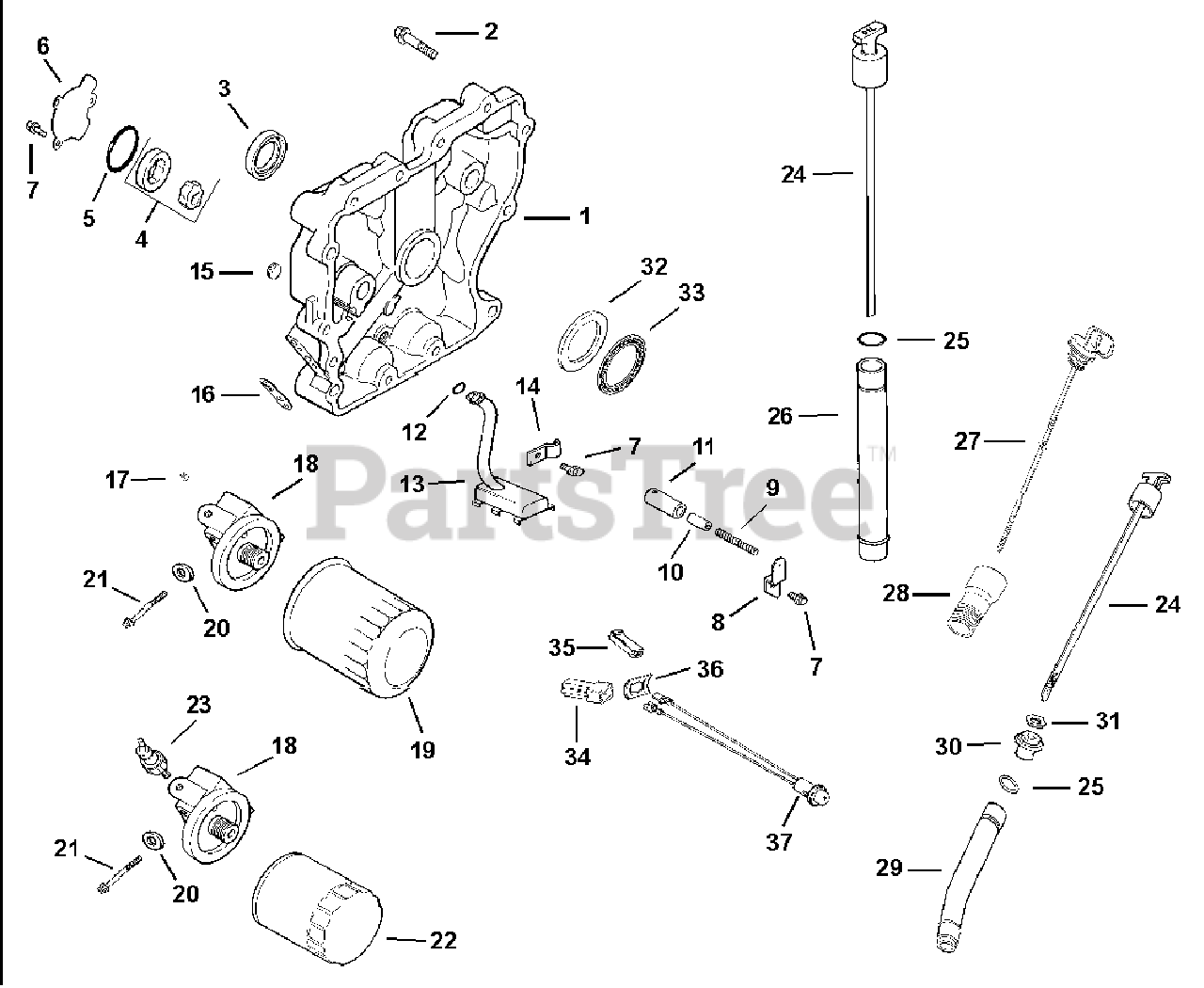

Oil Pan/Lubrication 3-27-47 Parts Diagram

  • Title

1

Kohler 12 009 13

PLATE - USE 12 009 10
(Superseded to 12 009 30)

$

$

Not available

2

Kohler SM-0839045

Screw, hex. flange M8x1.25x45

$

$

Not available

3

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

4

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

5

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

6

Kohler 12 096 02-S

USE 12 096 21-S COVER
(Superseded to 12 096 21-S)

$14.99

$

Usually ships in 2-5 days

0

7

Kohler SM-0545016

Screw, hex. flange M5x0.8x16
(Superseded to SM-545016)

$2.49

$

In Stock, Qty 15

0

8

Kohler 12 126 16

VALVE - USE 25 462 09
(Superseded to 25 462 09-S)

$13.99

$

In Stock, only 1 left!

0

9

Kohler 12 089 16-S

SPRING - DISCONTINUED

$

$

Not available

10

Kohler 12 462 02-S

VALVE, PISTON RELIEF

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 12 208 02

VALVE - USE 25 462 09
(Superseded to 25 462 09-S)

$13.99

$

In Stock, only 1 left!

0

12

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 1 left!

0

13

Kohler 12 381 01

KIT - USE 12 755 73
(Superseded to 12 755 73-S)

$88.99

$

Usually ships in 2-5 days

0

14

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

16

Kohler 12 041 07-S

GASKET, OIL FILTER ADAPTER

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 12 029 01-S

ADAPTER - DISCONTINUED

$

$

Not available

20

Kohler X-25-12-S

WASHER

$3.49

$

In Stock, only 2 left!

0

21

Kohler M-0639060

Screw, hex. flange M6x1x60

$0.99

$

Usually ships in 2-5 days

0

22

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

23

Kohler 52 099 06

SWITCH - USE 25 099 24
(Superseded to 25 099 24)

$15.99

$

In Stock, Qty 5

0

27

Kohler 12 038 05-S

DIPSTICK

$

$

Not available

28

Kohler 12 123 18-S

TUBE, OIL FILL - DISCONTINUED

$

$

Not available
