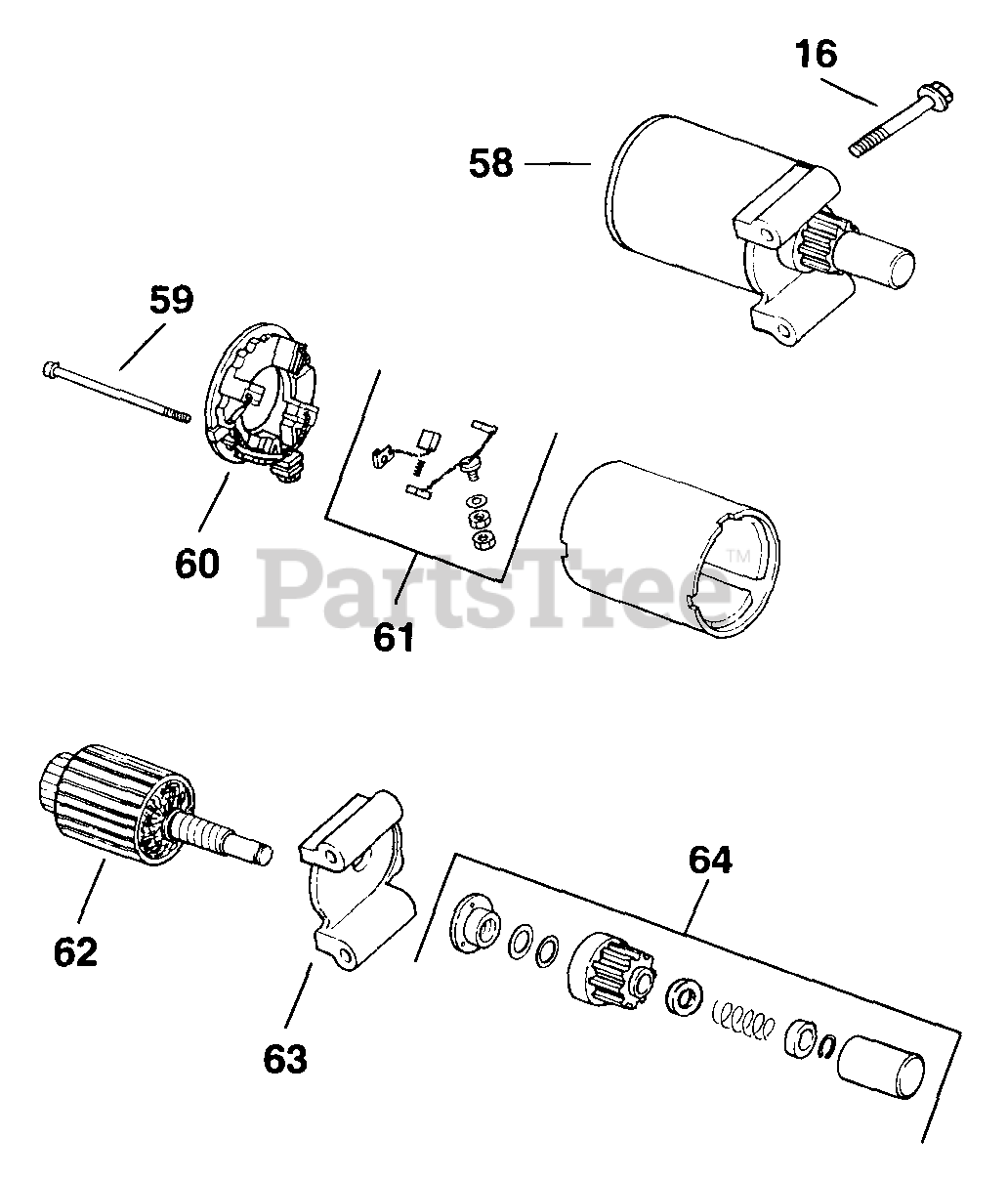

CH14-1818 - Kohler Command PRO Single Engine, Made for Target, 14hp Starting System, Electric (Cont.) 7-27-25 (TP-2401-B) Parts Diagram

Command PRO Single Engine, Made for Target, 14hp

Starting System, Electric (Cont.) 7-27-25 (TP-2401-B) Parts Diagram

  • Title

58

Kohler 12 098 13-S

USE 12 098 20-S STARTER
(Superseded to 12 098 20-S)

Note: After Serial No. 2312100014. Includes 59-64

$275.99

$

In Stock, only 1 left!

0

59

Kohler 12 086 25-S

SCREW - (#DSC)

Note: After Serial No. 2312100014

$

$

Not available

60

Kohler 12 227 11-S

COMMUTATOR, END CAP

Note: After Serial No. 2312100014

$104.99

$

Usually ships in 2-5 days

0

61

Kohler 82 755 28-S

KIT, BRUSH & SPRING - DISCONTINUED

Note: After Serial No. 2312100014

$

$

Not available

62

Kohler 45 170 03-S

ARMATURE ASSY - DISCONTINUED

Note: After Serial No. 2312100014

$

$

Not available

63

Kohler 12 227 05-S

USE 12 227 16-S CAP ASSEMBLY
(Superseded to 12 227 16-S)

Note: After Serial No. 2312100014

$

$

Not available

64

Kohler 12 755 53-S

KIT, DRIVE

Note: After Serial No. 2312100014

$169.99

$

Usually ships in 2-5 days

0
