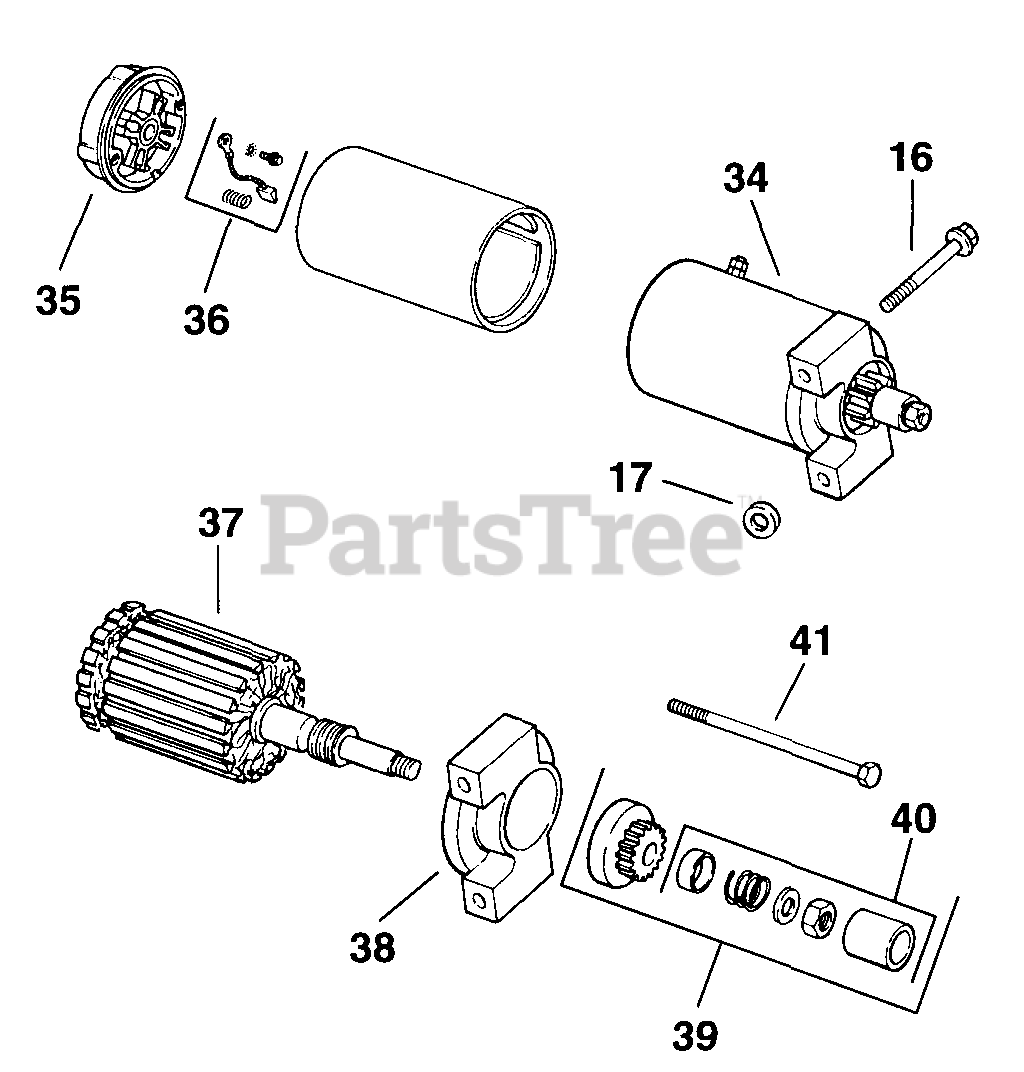

CH14-1818 - Kohler Command PRO Single Engine, Made for Target, 14hp Starting System, Electric 7-27-25 (TP-2401-B) Parts Diagram

Command PRO Single Engine, Made for Target, 14hp

Starting System, Electric 7-27-25 (TP-2401-B) Parts Diagram

  • Title

17

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.49

$

Usually ships in 2-5 days

0

34

Kohler 12 098 08

STARTER - USE 12 098 13
(Superseded to 12 098 13)

Note: After Serial No. 2312100014. Includes 35-41. To be replaced by 12-098-13

$274.99

$

In Stock, only 1 left!

0

35

Kohler 12 227 08

CAP - USE 12 227 11
(Superseded to 12 227 11)

Note: After Serial No. 2312100014

$103.99

$

Usually ships in 2-5 days

0

36

Kohler 52 755 15

KIT - USE 82 755 28
(Superseded to 82 755 28)

Note: After Serial No. 2312100014. Replaced by 82-755-28

$

$

Not available

37

Kohler 12 170 02

ARMATURE - DISCONTINUED

Note: After Serial No. 2312100014

$

$

Not available

38

Kohler 12 227 01

CAP - USE 12 227 05
(Superseded to 12 227 16-S)

Note: After Serial No. 2312100014

$

$

Not available

39

Kohler 12 755 12

DRIVE KIT - USE 12 755 53
(Superseded to 12 755 53)

Note: After Serial No. 2312100014. Includes 40

$169.99

$

Usually ships in 2-5 days

0

40

Kohler 12 755 06

DRIVE KIT - USE 12 755 53
(Superseded to 12 755 53)

Note: After Serial No. 2312100014

$169.99

$

Usually ships in 2-5 days

0

41

Kohler 12 086 02-S

SCREW - DISCONTINUED

Note: After Serial No. 2312100014

$

$

Not available
