CH14-1810 - Kohler Command PRO Single Engine, Made for Ariens, 14hp Starting System, Electric 7-27-17 (TP-2401-B) Parts Diagram

Command PRO Single Engine, Made for Ariens, 14hp

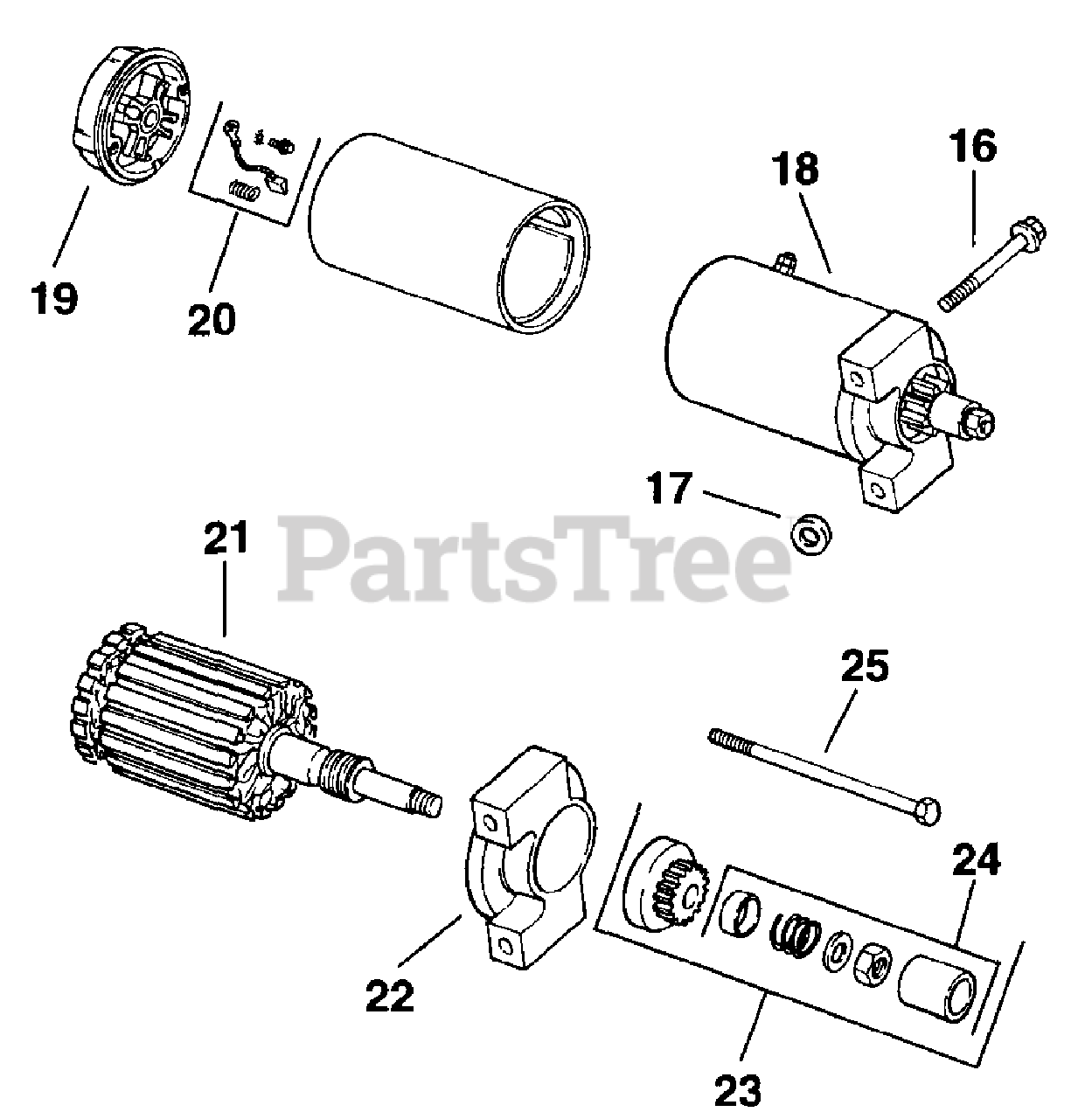

Starting System, Electric 7-27-17 (TP-2401-B) Parts Diagram

  • Title

16

Kohler M-0839070

SCREW - USE M-839070

$

$

Not available

17

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.99

$

Usually ships in 2-5 days

0

18

Kohler 12 098 05

STARTER - USE 12 098 13
(Superseded to 12 098 13)

Note: Before Serial No. 2109200014. Includes 17,19-25. To be replaced by 12-098-13

$275.99

$

In Stock, only 1 left!

0

19

Kohler 12 243 01

CAP - USE 12 227 11
(Superseded to 12 227 11-S)

Note: Before Serial No. 2109200014

$104.99

$

Usually ships in 2-5 days

0

20

Kohler 52 755 15

KIT - USE 82 755 28
(Superseded to 82 755 28)

Note: Before Serial No. 2109200014. Replaced by 82-755-28

$

$

Not available

21

Kohler 12 170 02

ARMATURE - DISCONTINUED

Note: Before Serial No. 2109200014

$

$

Not available

22

Kohler 12 227 01

CAP - USE 12 227 05
(Superseded to 12 227 16-S)

Note: Before Serial No. 2109200014

$

$

Not available

23

Kohler 12 755 12

DRIVE KIT - USE 12 755 53
(Superseded to 12 755 53)

Note: Before Serial No. 2109200014. Includes 24

$169.99

$

Usually ships in 2-5 days

0

24

Kohler 12 755 06

DRIVE KIT - USE 12 755 53
(Superseded to 12 755 53)

Note: Before Serial No. 2109200014

$169.99

$

Usually ships in 2-5 days

0

25

Kohler 12 086 02-S

SCREW - DISCONTINUED

Note: Before Serial No. 2109200014

$

$

Not available

5235701-S

Kohler 52 357 01-S

Lubricant, Inertia Drive Starter (0.25 oz.)

$

$

Not available
