CH13-22541 - Kohler Command PRO Single Engine, Made for Premium Power, 13hp, 9.7kW Ignition/Electrical 5-27-323 Parts Diagram

Command PRO Single Engine, Made for Premium Power, 13hp, 9.7kW

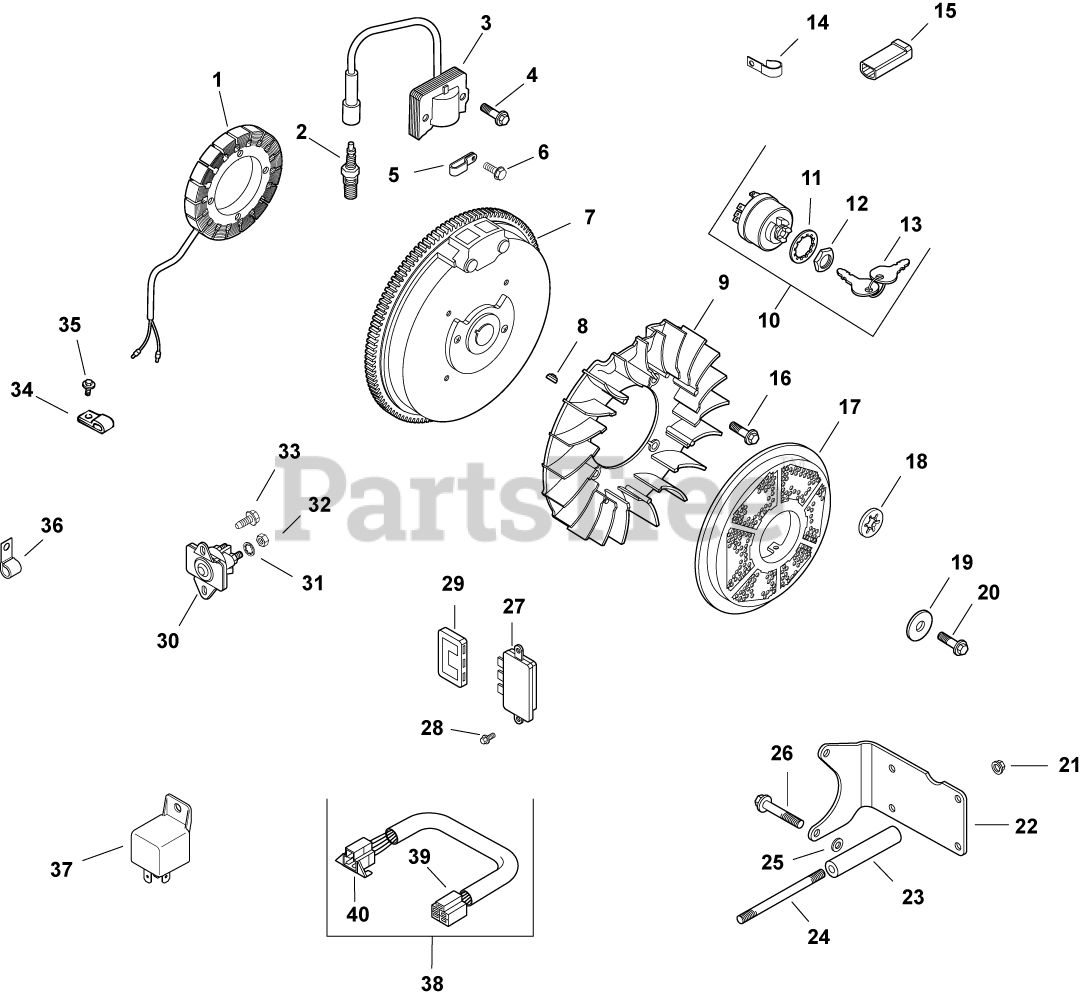

Ignition/Electrical 5-27-323 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 8

0

2

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

3

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

In Stock, only 1 left!

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

5

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

6

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

7

Kohler 12 025 19-S

FLYWHEEL

$393.99

$

Usually ships in 2-5 days

0

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

9

Kohler 12 157 06-S

FAN

$

$

Not available

10

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 11-13)

$63.99

$

In Stock, only 4 left!

0

11

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

13

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 1 left!

0

14

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

15

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

16

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

17

Kohler 12 162 03-S

SCREEN

$12.99

$

Usually ships in 2-5 days

0

18

Kohler 24 018 03-S

RETAINER

$2.49

$

In Stock, only 4 left!

0

19

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

20

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

21

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 12 126 58-S

BRACKET, FUEL TANK

$21.99

$

In Stock, only 1 left!

0

23

Kohler 12 112 19-S

SPACER

$87.99

$

Usually ships in 2-5 days

0

24

Kohler M-829133-S

STUD, M8X1.25X133-USE 25 755 54-S
(Superseded to 25 755 54-S)

$2.99

$

Usually ships in 2-5 days

0

25

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.99

$

Usually ships in 2-5 days

0

26

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0

27

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

28

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

29

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

30

Kohler 25 435 02-S

SOLENOID - WATERPROOF (KM)-USE 25 435 08
(Superseded to 25 435 08-S)

$76.99

$

In Stock, only 2 left!

0

31

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

32

Kohler 25 100 19-S

NUT, JAM 1/4-20 GRADE 2

$3.49

$

Usually ships in 2-5 days

0

33

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

34

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

35

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

36

Kohler 47 154 03-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

37

Kohler 25 404 01-S

RELAY

$102.99

$

Usually ships in 2-5 days

0

38

Kohler 25 155 06-S

CONNECTOR

Note: (includes 39, 40)

$8.49

$

Usually ships in 2-5 days

0

39

Kohler 25 155 09-S

CONNECTOR ASSEMBLY

$55.99

$

Usually ships in 2-5 days

0

40

Kohler 48 155 01-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

1217623-S

Kohler 12 176 23-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$79.99

$

Usually ships in 2-5 days

0

1251809-S

Kohler 12 518 09-S

LEAD, STARTER SOLENOID - DISCONTINUED

$

$

Not available

2545405-S

Kohler 25 454 05-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

5217618-S

Kohler 52 176 18-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$62.99

$

Usually ships in 2-5 days

0

X-22-10-S

Kohler X-22-10-S

WASHER, INT TOOTH LOCK 3/8"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

X-7-23-S

Kohler X-7-23-S

SCREW,CAP HD 3/8-16x1/2"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

2551829-S

Kohler 25 518 29-S

LEAD, GROUND SOLENOID

$6.99

$

Usually ships in 2-5 days

0

1212696-S

Kohler 12 126 96-S

BRACKET, GROUND STRAP

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2408617-S

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 7

0

4130401-S

Kohler 41 304 01-S

FUSE

Note: NOT ILLUSTRATED

$

$

Not available

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
