CH13-22541 - Kohler Command PRO Single Engine, Made for Premium Power, 13hp, 9.7kW Exhaust 11-27-143 Parts Diagram

Command PRO Single Engine, Made for Premium Power, 13hp, 9.7kW

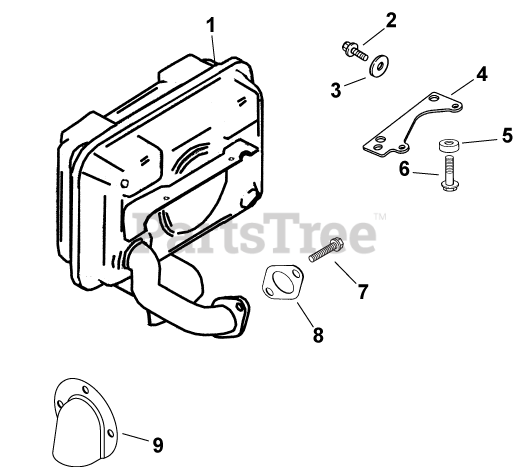

Exhaust 11-27-143 Parts Diagram

  • Title

1

Kohler 12 068 40-S

MUFFLER

$

$

Not available

2

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 14

0

3

Kohler X-25-78-S

WASHER, PLAIN 1/4"

$3.49

$

In Stock, only 2 left!

0

4

Kohler 12 126 71-S

BRACKET, MUFFLER

$

$

Not available

5

Kohler 12 112 20-S

SPACER

$7.99

$

In Stock, only 1 left!

0

6

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 3 left!

0

7

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

8

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 10

0

9

Kohler 12 755 106-S

KIT, DEFLECTOR

Note: (includes 25 086 40-S [qty 3], M-545010-S [qty 3])

$18.99

$

Usually ships in 2-5 days

0
