CH13-22534 - Kohler Command PRO Single Engine, Made for Kohler Repower, 13hp, 9.7kW Blower Housing & Baffles 6-27-131 Parts Diagram

Command PRO Single Engine, Made for Kohler Repower, 13hp, 9.7kW

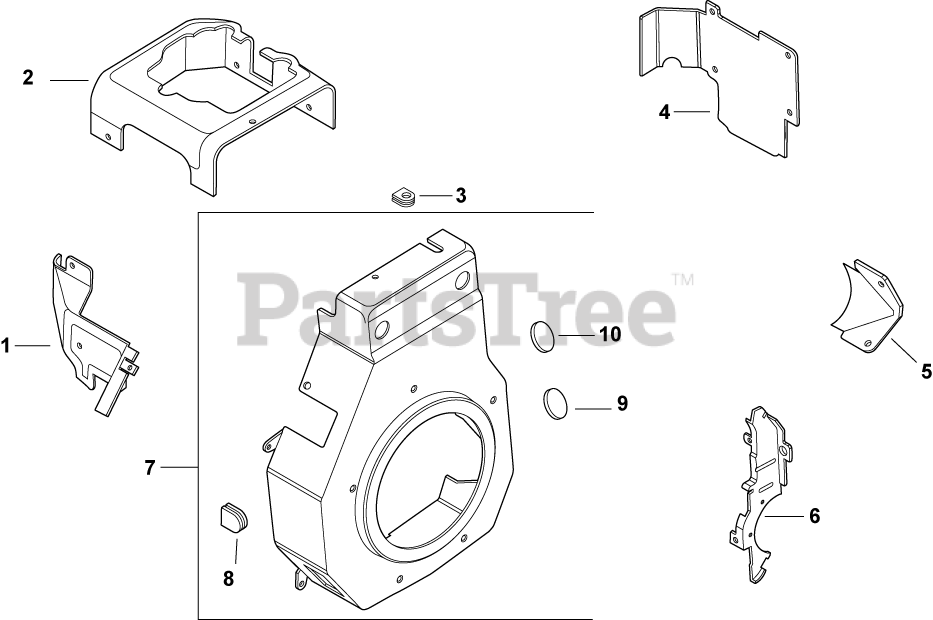

Blower Housing & Baffles 6-27-131 Parts Diagram

  • Title

1

Kohler 12 063 10-S

BAFFLE, INTAKE SIDE

$47.99

$

Usually ships in 2-5 days

0

2

Kohler 12 063 08-S

BAFFLE, CYLINDER HEAD

$48.99

$

Usually ships in 2-5 days

0

3

Kohler 12 313 03-S

GROMMET

$

$

Not available

4

Kohler 12 063 14-S

BAFFLE, CYLINDER

$24.99

$

Usually ships in 2-5 days

0

5

Kohler 12 096 33-S

COVER, STARTER (BLACK)

$

$

Not available

6

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

7

Kohler 12 027 68-S

KIT, BLOWER HOUSING

Note: (includes 8-10, 41 037 10-S)

$220.99

$

Usually ships in 2-5 days

0

8

Kohler 12 313 05-S

GROMMET

$21.99

$

Usually ships in 2-5 days

0

9

Kohler 25 139 17-S

PLUG, BUTTON 1/2

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

M-561016-S

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 2 left!

0

M-550010-S

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0

No Description

$

$

Not available
