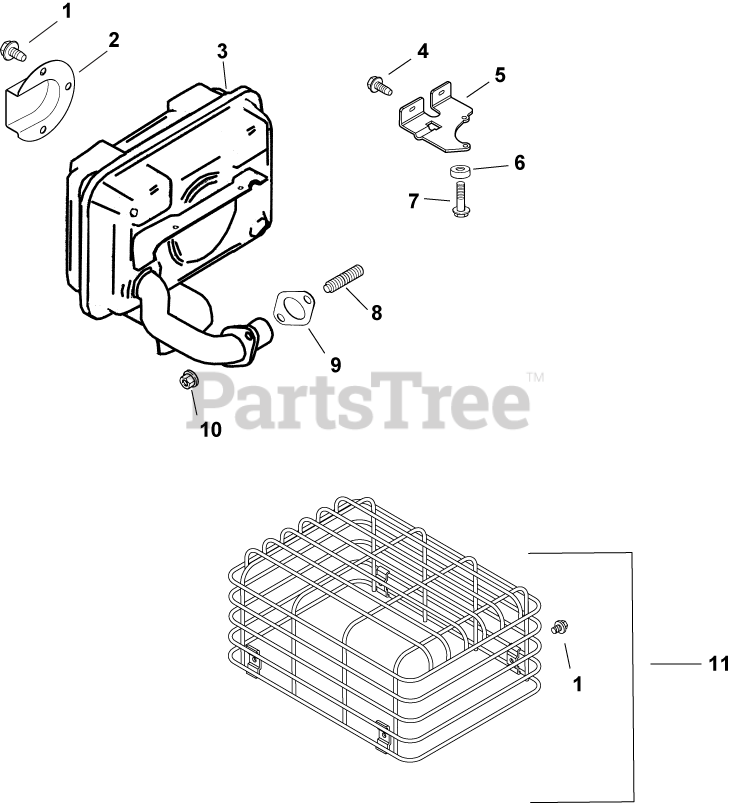

CH13-22532 - Kohler Command PRO Single Engine, Made for E.P. Barrus, 13hp, 9.7kW Exhaust 11-27-114 Parts Diagram

Command PRO Single Engine, Made for E.P. Barrus, 13hp, 9.7kW

Exhaust 11-27-114 Parts Diagram

  • Title
1

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

2

Kohler 12 265 02-S

DEFLECTOR, EXHAUST

$14.99

$

Usually ships in 2-5 days

0

3

$187.99

$

Usually ships in 2-5 days

0

4

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

5

Kohler 12 126 57-S

BRACKET, MUFFLER

$95.99

$

Usually ships in 2-5 days

0

$7.99

$

In Stock, only 1 left!

0

7

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 3 left!

0

8

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

9

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 10

0

10

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

11

Kohler 12 755 107-S

KIT, MUFFLER GUARD

Note: (includes 1 [qty 4])

$99.99

$

In Stock, only 1 left!

0
