CH13-22528 - Kohler Command PRO Single Engine, Made for Gardner, 13hp, 9.7kW Blower Housing & Baffles 6-27-122 Parts Diagram

Command PRO Single Engine, Made for Gardner, 13hp, 9.7kW

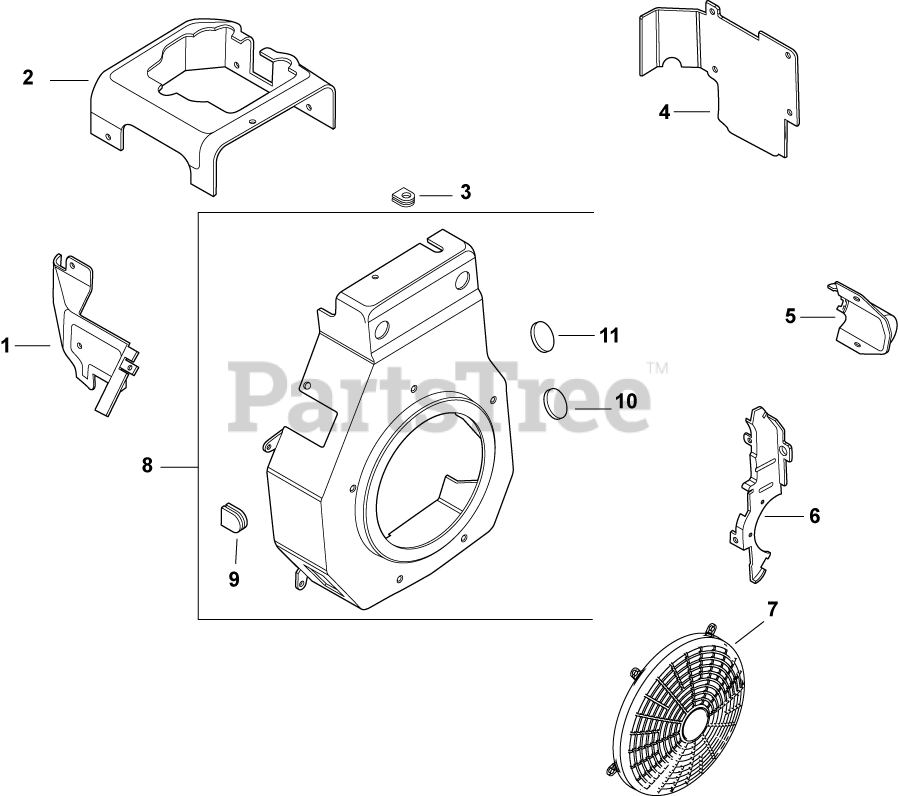

Blower Housing & Baffles 6-27-122 Parts Diagram

  • Title

1

Kohler 12 063 10-S

BAFFLE, INTAKE SIDE

$47.99

$

Usually ships in 2-5 days

0

2

Kohler 12 063 08-S

BAFFLE, CYLINDER HEAD

$48.99

$

Usually ships in 2-5 days

0

3

Kohler 12 313 03-S

GROMMET

$

$

Not available

4

Kohler 12 063 19-S

BAFFLE, CYLINDER

$

$

Not available

5

Kohler 12 096 39-S

COVER, STARTER

$24.99

$

Usually ships in 2-5 days

0

6

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

7

Kohler 12 314 07-S

GUARD, STYLIZED USE 12 755 65-S
(Superseded to 12 755 65-S)

$52.99

$

In Stock, only 1 left!

0

8

Kohler 12 027 72-S

KIT, BLOWER HOUSING

Note: (includes M-545010-S [qty 2], 5, 9-11 & 41 037 10-S)

$231.99

$

Usually ships in 2-5 days

0

9

Kohler 12 313 05-S

GROMMET

$21.99

$

Usually ships in 2-5 days

0

10

Kohler 25 139 17-S

PLUG, BUTTON 1/2

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 3 left!

0

M-550010-S

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

M-561016-S

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

2511324-S

Kohler 25 113 24-S

LABEL, (ROUND KOHLER GOLD)-USE 24 113 18
(Superseded to 24 113 499-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

M-550010-S

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
