CH13-22527 - Kohler Command PRO Single Engine, Made for Wood Mizer, 13hp, 9.7kW Fuel System 8-27-166 Parts Diagram

Command PRO Single Engine, Made for Wood Mizer, 13hp, 9.7kW

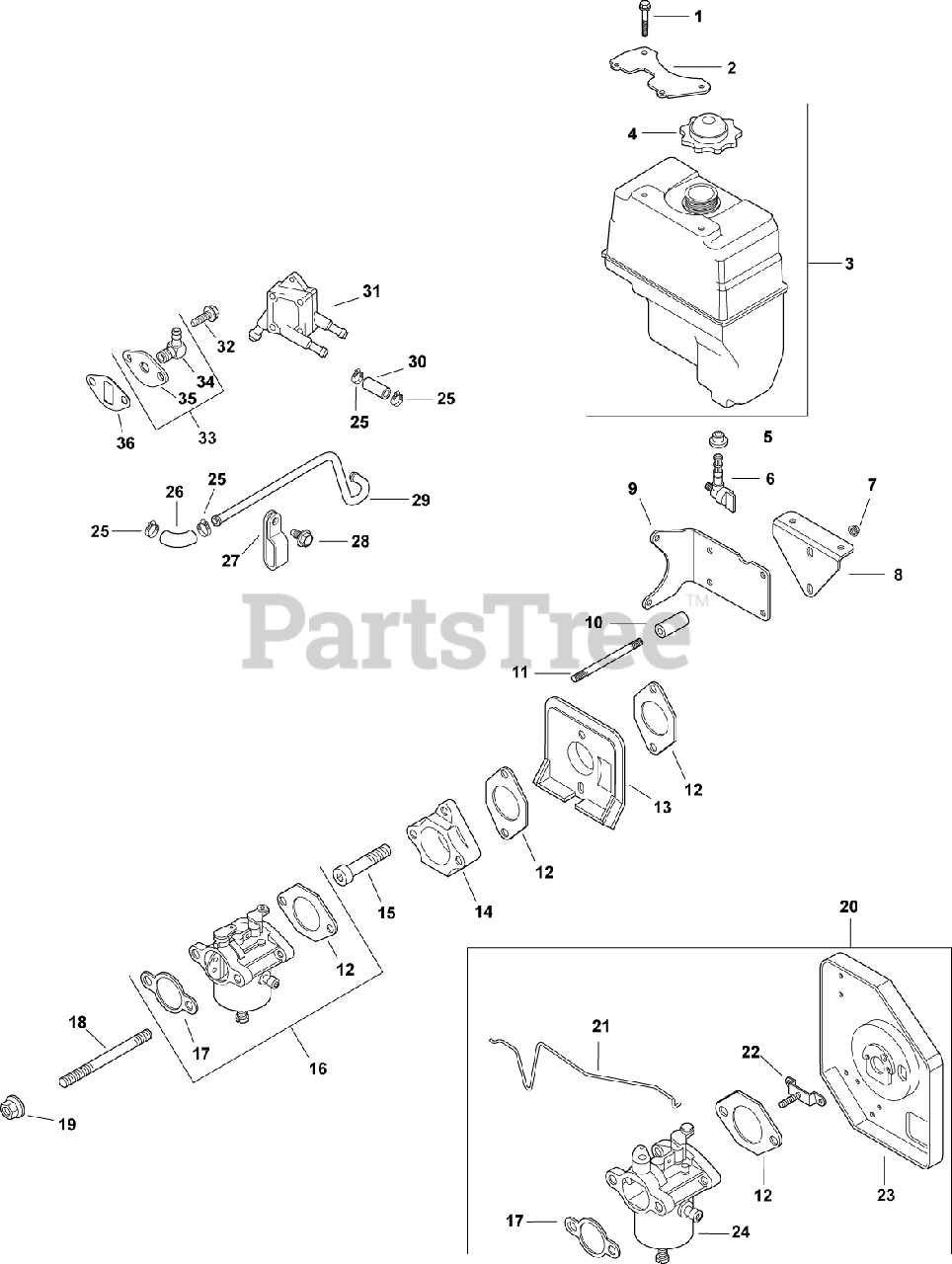

Fuel System 8-27-166 Parts Diagram

  • Title

1

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

2

Kohler 12 126 62-S

BRACKET, FUEL TANK

$15.99

$

Usually ships in 2-5 days

0

3

Kohler 12 760 01-S

KIT, FUEL TANK

Note: (includes 4)

$

$

Not available

4

Kohler 25 173 20-S

CAP, FUEL TANK

$34.99

$

In Stock, only 1 left!

0

5

Kohler 25 313 01-S

BUSHING, FUEL TANK

$5.99

$

In Stock, Qty 8

0

6

Kohler 25 462 03-S

VALVE, FUEL SHUT-OFF

$26.99

$

In Stock, only 1 left!

0

7

Kohler M-852080-S

NUT, FLG M8X1.25

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 12 126 18-S

BRACKET

$37.99

$

Usually ships in 2-5 days

0

9

Kohler 12 126 62-S

BRACKET, FUEL TANK

$15.99

$

Usually ships in 2-5 days

0

10

Kohler 12 112 11-S

SPACER, FUEL TANK

$6.49

$

Usually ships in 2-5 days

0

11

Kohler M-829133-S

STUD, M8X1.25X133-USE 25 755 54-S
(Superseded to 25 755 54-S)

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

13

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

14

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

15

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

16

Kohler 12 853 139-S

KIT, CARBURETOR w/GASKETS

Note: (includes 12,17)

$269.99

$

In Stock, only 1 left!

0

17

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

18

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

19

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

20

Kohler 12 853 32-S

KIT, CARB. RETROFIT

Note: (includes 12 [qty 1], 17, 21-24)

$224.99

$

Usually ships in 2-5 days

0

21

Kohler 12 079 08-S

LINKAGE, CHOKE

$12.99

$

In Stock, only 1 left!

0

22

Kohler 12 126 46-S

BRACKET, AIR CLEANER

$121.99

$

Usually ships in 2-5 days

0

23

Kohler 12 094 06-S

BASE, AIR CLEANER

$43.99

$

Usually ships in 2-5 days

0

24

Kohler 12 853 80-S

CARBURETOR W/GASEKTS - USE 12 853 139-S
(Superseded to 12 853 139-S)

Note: (includes 12 [qty 1], 17)

$269.99

$

In Stock, only 1 left!

0

25

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

26

Kohler 25 111 36-S

HOSE, FUEL LOW-PERMEATION

$7.99

$

In Stock, only 1 left!

0

27

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

28

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

29

Kohler 12 353 11-S

LINE, FUEL - DISCONTINUED

$

$

Not available

30

Kohler 12 353 01-S

LINE - DISCONTINUED

$

$

Not available

31

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 16

0

32

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

Usually ships in 2-5 days

0

33

Kohler 52 096 46-S

COVER,FUEL PUMP ASSEM - DISC.

Note: (includes 34, 35)

$

$

Not available

34

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0

35

Kohler 52 096 42-S

COVER, FUEL PUMP PAD - DISCONTINUED

$

$

Not available

36

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

Usually ships in 2-5 days

0
