CH13-22525 - Kohler Command PRO Single Engine, Made for Excel Hustler, 13hp, 9.7kW Fuel System 8-27-160 Parts Diagram

Command PRO Single Engine, Made for Excel Hustler, 13hp, 9.7kW

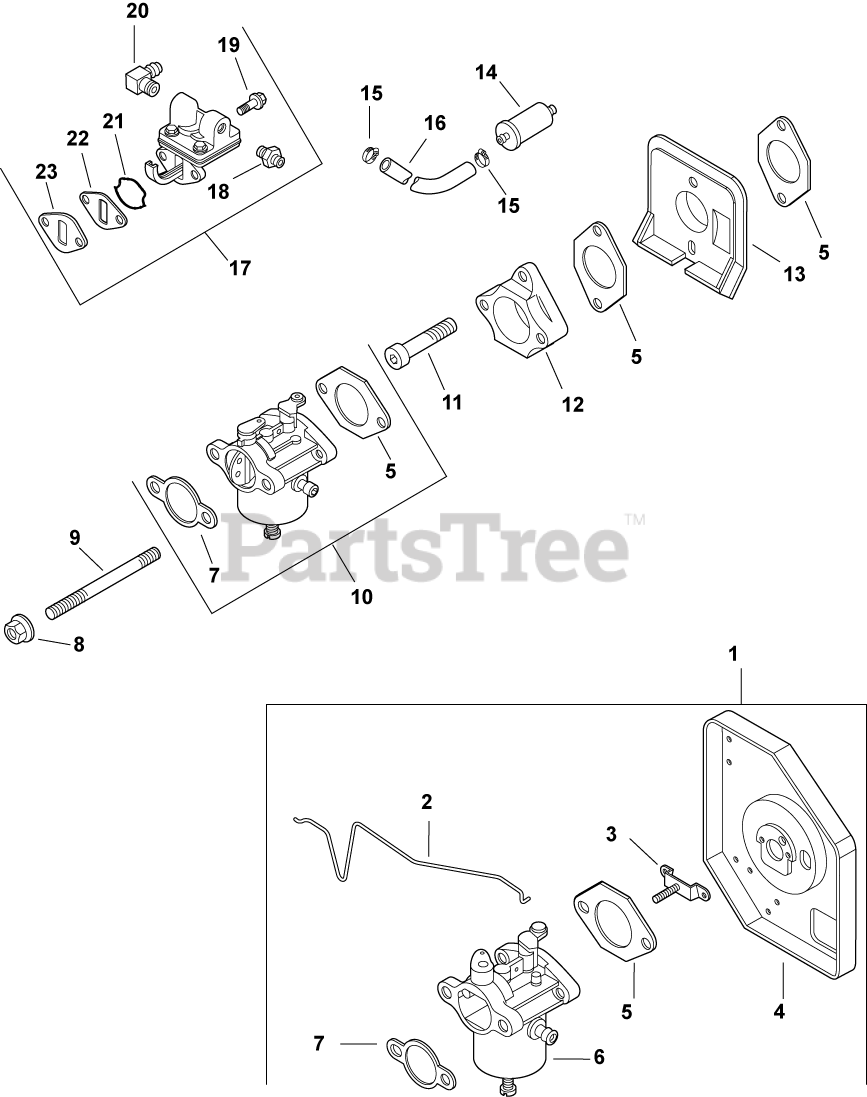

Fuel System 8-27-160 Parts Diagram

  • Title

1

Kohler 12 853 32-S

KIT, CARB. RETROFIT

Note: (includes 2-4, 5 [qty 1], 6,7) (Before S/N 3222700011)

$224.99

$

Usually ships in 2-5 days

0

2

Kohler 12 079 08-S

LINKAGE, CHOKE

$12.99

$

In Stock, only 1 left!

0

3

Kohler 12 126 46-S

BRACKET, AIR CLEANER

$121.99

$

Usually ships in 2-5 days

0

4

Kohler 12 094 06-S

BASE, AIR CLEANER

$43.99

$

Usually ships in 2-5 days

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

6

Kohler 12 853 80-S

CARBURETOR W/GASEKTS - USE 12 853 139-S
(Superseded to 12 853 139-S)

Note: (includes 5 [qty 1], 7)

$269.99

$

In Stock, only 1 left!

0

7

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

8

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

9

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

10

Kohler 12 853 139-S

KIT, CARBURETOR w/GASKETS

Note: (includes 5 [qty 1], 7) (After S/N 3222700001)

$269.99

$

In Stock, only 1 left!

0

11

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

12

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

13

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

14

Kohler 25 050 07-S

FILTER, FUEL

$10.99

$

In Stock, only 3 left!

0

15

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

16

Kohler 25 353 03-S

LINE, FLEXIBLE FUEL

$19.99

$

Usually ships in 2-5 days

0

17

Kohler 12 559 02-S

KIT, FUEL PUMP

Note: (includes 18-23 & 25 141 06-S)

$48.99

$

In Stock, only 2 left!

0

18

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, only 1 left!

0

19

Kohler M-664020-S

SCREW, LBD SKT M6x1.0x20-(#25086403S)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

20

Kohler 12 294 13-S

CONNECTOR, 90 DEG. HOSE

$6.49

$

In Stock, only 1 left!

0

21

Kohler 25 153 04-S

O-RING, FUEL PUMP

$2.99

$

In Stock, only 2 left!

0

22

Kohler 12 112 05-S

SPACER, FUEL PUMP

$7.49

$

In Stock, only 2 left!

0

23

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

Usually ships in 2-5 days

0

2514106-S

Kohler 25 141 06-S

TOOL, INSTALLATION (SNAP RING)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
