CH13-22525 - Kohler Command PRO Single Engine, Made for Excel Hustler, 13hp, 9.7kW Exhaust 11-27-37 Parts Diagram

Command PRO Single Engine, Made for Excel Hustler, 13hp, 9.7kW

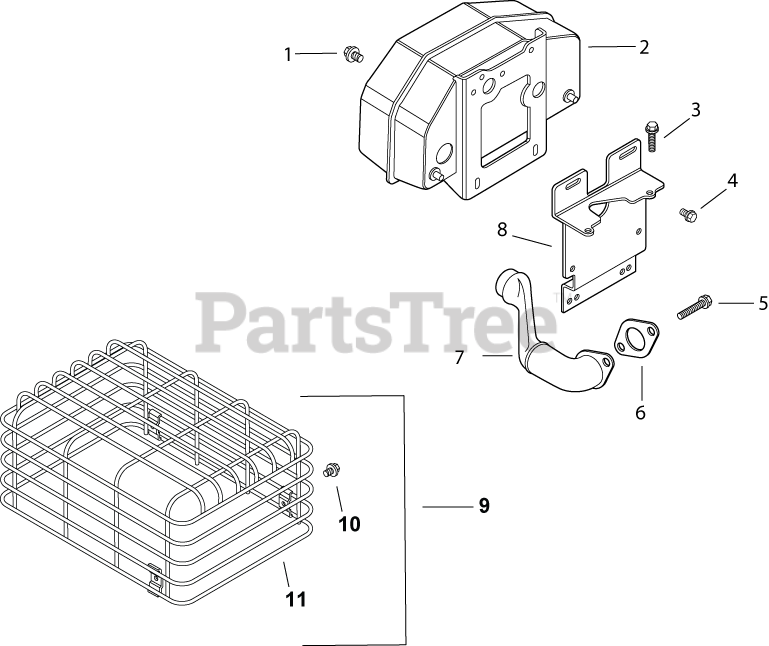

Exhaust 11-27-37 Parts Diagram

  • Title

1

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

2

Kohler 12 068 11-S

MUFFLER

$463.99

$

Usually ships in 2-5 days

0

3

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

5

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

6

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 11

0

7

Kohler 12 382 02-S

PIPE, INLET - DISCONTINUED

$

$

Not available

8

Kohler 12 126 31-S

BRACKET, MUFFLER

$55.99

$

Usually ships in 2-5 days

0

9

Kohler 12 755 26-S

KIT, MUFFLER GUARD

Note: (includes 11 [qty 3], 12 & M-550010-S [qty 3])

$151.99

$

Usually ships in 2-5 days

0

10

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

11

Kohler 12 314 02-S

GUARD, MUFFLER

$115.99

$

Usually ships in 2-5 days

0

1211220-S

Kohler 12 112 20-S

SPACER

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 1 left!

0

M-550010-S

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0
