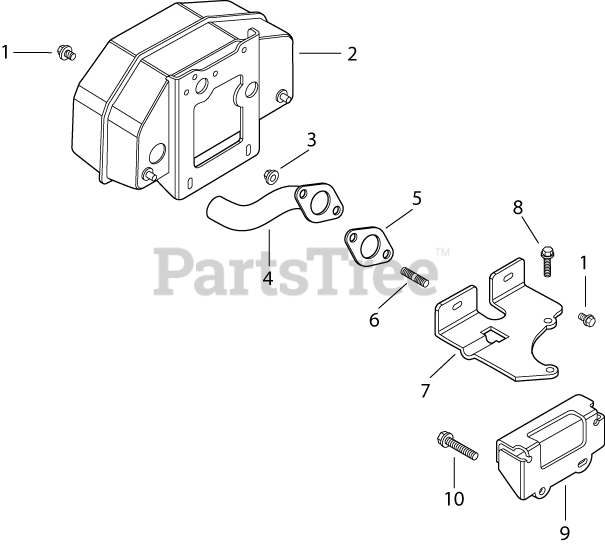

CH13-22524 - Kohler Command PRO Single Engine, Made for EPG, 13hp, 9.7kW Exhaust 11-27-18 Parts Diagram

Command PRO Single Engine, Made for EPG, 13hp, 9.7kW

Exhaust 11-27-18 Parts Diagram

  • Title
1

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 14

0

2

$463.99

$

Usually ships in 2-5 days

0

3

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, only 1 left!

0

4

Kohler 12 382 03-S

PIPE, INLET

$37.99

$

Usually ships in 2-5 days

0

5

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 10

0

6

Kohler 25 072 04-S

STUD, EXHAUST (KM)-USE 25 072 24-S
(Superseded to 25 072 24-S)

$3.99

$

In Stock, only 3 left!

0

7

Kohler 12 126 32-S

BRACKET, MUFFLER

$32.99

$

Usually ships in 2-5 days

0

8

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 3 left!

0

9

Kohler 12 126 34-S

BRACKET, MUFFLER

$72.99

$

Usually ships in 2-5 days

0

10

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 14

0

1211220-S

Kohler 12 112 20-S

SPACER

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 1 left!

0
