CH13-22523 - Kohler Command PRO Single Engine, Made for Gorman Rupp, 13hp, 9.7kW Oil Pan/Lubrication 3-27-89 Parts Diagram

Command PRO Single Engine, Made for Gorman Rupp, 13hp, 9.7kW

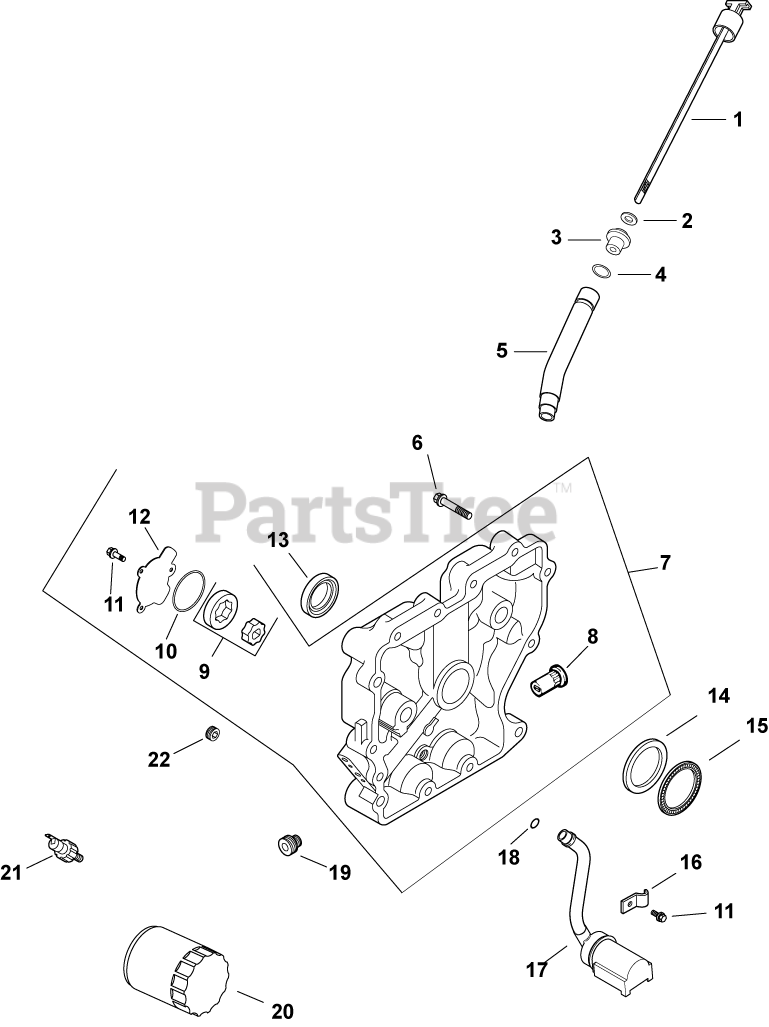

Oil Pan/Lubrication 3-27-89 Parts Diagram

  • Title

1

Kohler 47 038 27-S

DIPSTICK

$34.99

$

Usually ships in 2-5 days

0

2

Kohler X-25-44-S

WASHER

$3.99

$

Usually ships in 2-5 days

0

3

Kohler 52 032 14-S

SEAL USE 25 032 13-S
(Superseded to 25 032 13-S)

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 41 153 01-S

O-RING

$5.49

$

In Stock, only 1 left!

0

5

Kohler 12 123 16-S

TUBE, OIL FILL

$28.99

$

Usually ships in 2-5 days

0

6

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

7

Kohler 12 009 53-S

CLOSURE PLATE ASSEMBLY - DISCONTINUED

Note: (includes 8-10, 11 [qty 3], 12)

$

$

Not available

8

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

9

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

10

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

11

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

13

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

14

Kohler 12 468 06-S

WASHER, THRUST (1MM)

$

$

Not available

15

Kohler 12 030 04-S

BEARING, THRUST

$91.99

$

Usually ships in 2-5 days

0

16

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

17

Kohler 12 755 73-S

KIT, OIL PICK-UP

Note: (includes 18)

$88.99

$

Usually ships in 2-5 days

0

18

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 2 left!

0

19

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

20

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

21

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

22

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

1242215-S

Kohler 12 422 15-S

SHIM, THRUST

Note: NOT ILLUSTRATED

$19.99

$

Usually ships in 2-5 days

0

1242216-S

Kohler 12 422 16-S

SHIM, THRUST - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2511305-S

Kohler 25 113 05-S

DECAL, OIL SENTRY - (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available
