CH13-22517 - Kohler Command PRO Single Engine, Made for Rayco, 13hp, 9.7kW Blower Housing & Baffles 6-27-99 Parts Diagram

Command PRO Single Engine, Made for Rayco, 13hp, 9.7kW

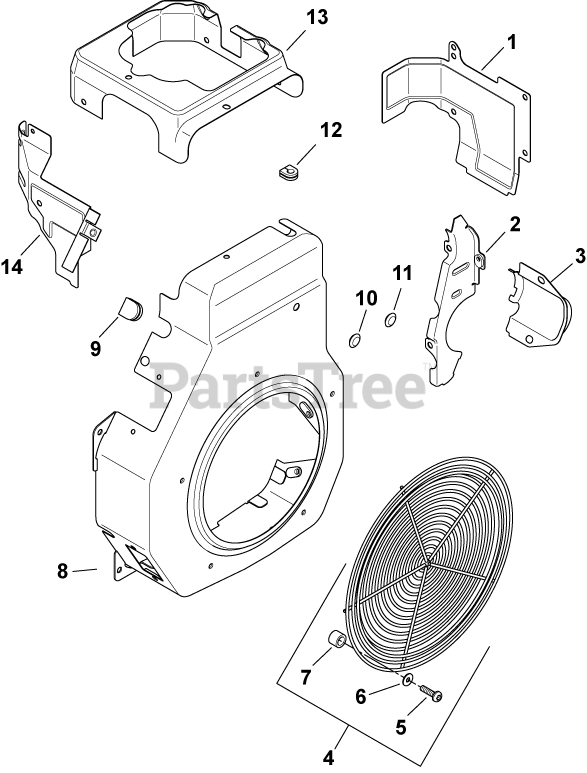

Blower Housing & Baffles 6-27-99 Parts Diagram

  • Title

1

Kohler 12 063 19-S

BAFFLE, CYLINDER

$

$

Not available

2

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

3

Kohler 12 096 39-S

COVER, STARTER

$24.99

$

Usually ships in 2-5 days

0

4

Kohler 12 755 44-S

KIT, GRASS SCREEN GUARD

Note: (includes 5-7)

$112.99

$

Usually ships in 2-5 days

0

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

6

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

7

Kohler 47 112 21-S

SPACER

$10.99

$

Usually ships in 2-5 days

0

8

Kohler 12 027 72-S

KIT, BLOWER HOUSING

Note: (includes 3, 9-11, M-545010-S [qty 2] & 41 037 10-S)

$231.99

$

Usually ships in 2-5 days

0

9

Kohler 12 313 05-S

GROMMET

$21.99

$

Usually ships in 2-5 days

0

10

Kohler 25 139 16-S

PLUG, BUTTON 9/16

$4.49

$

Usually ships in 2-5 days

0

11

Kohler 25 139 17-S

PLUG, BUTTON 1/2

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 12 313 03-S

GROMMET

$

$

Not available

13

Kohler 12 063 08-S

BAFFLE, CYLINDER HEAD

$48.99

$

Usually ships in 2-5 days

0

14

Kohler 12 063 10-S

BAFFLE, INTAKE SIDE

$47.99

$

Usually ships in 2-5 days

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

M-561016-S

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
