CH12.5-1942 - Kohler Command PRO Single Engine, Made for Champion-Denver, 12.5hp Blower Housing & Baffles 6-27-155 Parts Diagram

Command PRO Single Engine, Made for Champion-Denver, 12.5hp

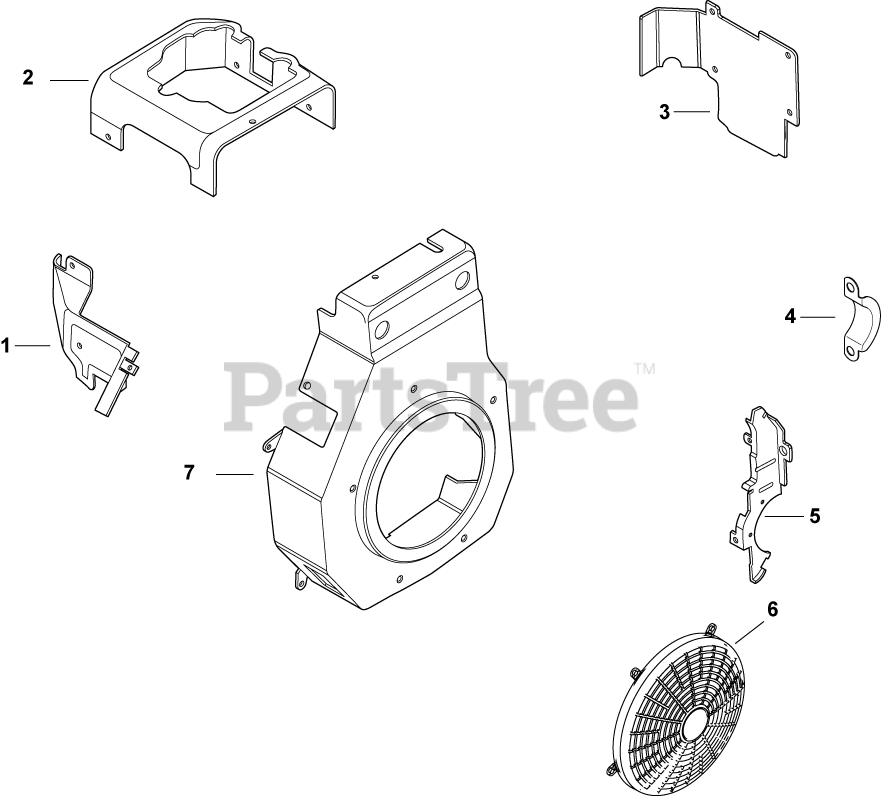

Blower Housing & Baffles 6-27-155 Parts Diagram

  • Title
1

Kohler 12 063 10-S

BAFFLE, INTAKE SIDE

$47.99

$

Usually ships in 2-5 days

0

2

Kohler 12 063 08-S

BAFFLE, CYLINDER HEAD

$48.99

$

Usually ships in 2-5 days

0

3

Kohler 12 063 19-S

BAFFLE, CYLINDER

$

$

Not available

4

Kohler 24 096 05-S

COVER, PINION

$12.99

$

Usually ships in 2-5 days

0

5

Kohler 12 146 07-S

PLATE, BACKING

$9.49

$

Usually ships in 2-5 days

0

6

Kohler 12 314 07-S

GUARD, STYLIZED USE 12 755 65-S
(Superseded to 12 755 65-S)

$52.99

$

In Stock, only 1 left!

0

7

Kohler 12 027 96-S

KIT, BLOWER HOUSING

Note: (includes 41 037 10-S)

$

$

Not available

1208637-S

Kohler 12 086 37-S

SCREW, CPTV WASHER

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-561020-S

Kohler M-561020-S

SCREW, THD FRM FLG 20mm - (#M545020S)
(Superseded to M-545020-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 6

0

2446810-S

Kohler 24 468 10-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0

2515402-S

Kohler 25 154 02-S

CLIP, MOUNTING-USE 25 154 13-S
(Superseded to 25 154 37-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 12

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, only 2 left!

0

M-550010-S

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 15

0

2408641-S

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

Note: NOT ILLUSTRATED

$2.99

$

In Stock, only 2 left!

0

2511324-S

Kohler 25 113 24-S

LABEL, (ROUND KOHLER GOLD)-USE 24 113 18
(Superseded to 24 113 499-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0
