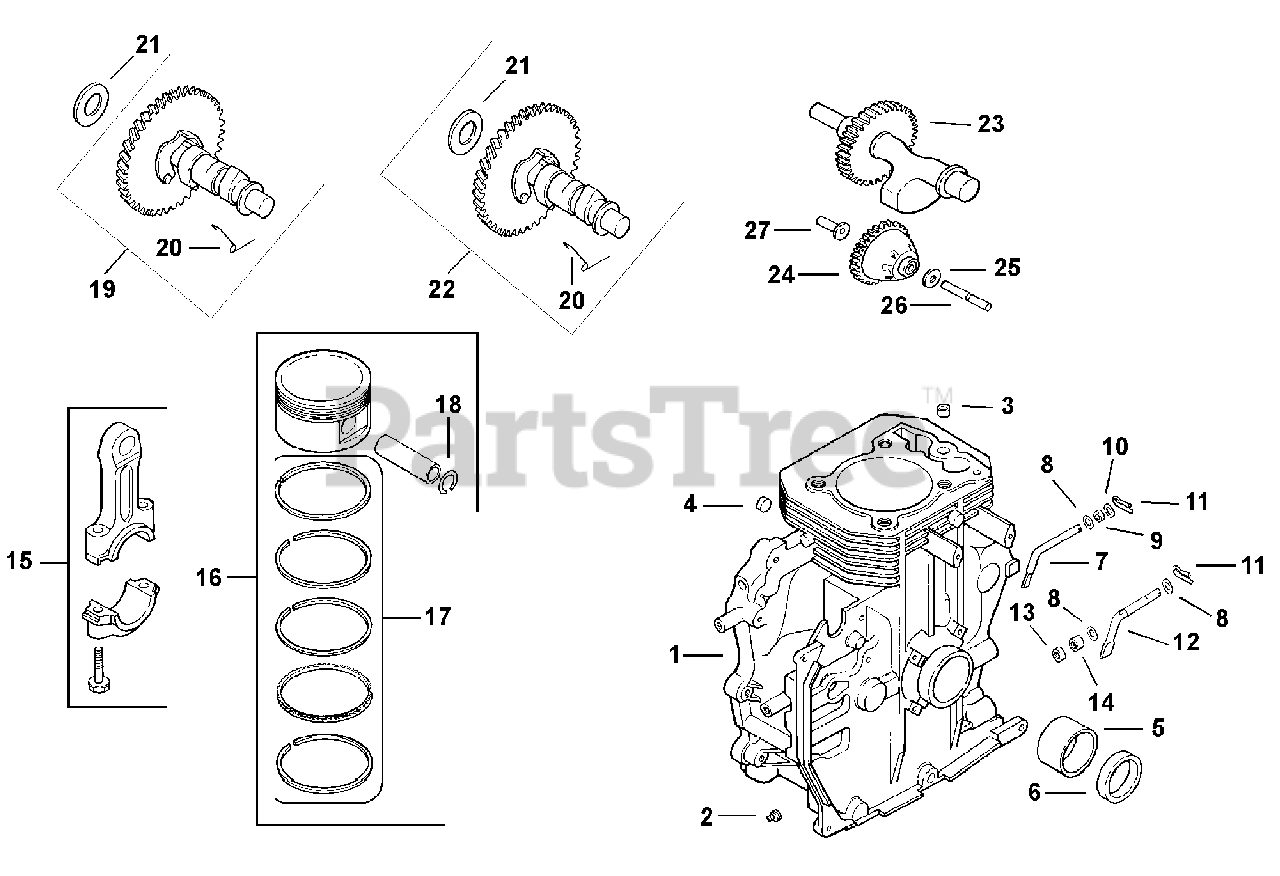

CH12.5-1904 - Kohler Command PRO Single Engine, Basic Version, 12.5hp Crankcase 2-27-21 REV. 8/31/2006 Parts Diagram

Command PRO Single Engine, Basic Version, 12.5hp

Crankcase 2-27-21 REV. 8/31/2006 Parts Diagram

  • Title

1

Crankcase

Note: Service with a Short Block. Refer to Selection Guide TP-2465.

$

$

Not available

2

Kohler X-75-10-S

PLUG, SQ HD PIPE 3/8" USE 25 139 57-S
(Superseded to 25 139 57-S)

$2.49

$

In Stock, only 3 left!

0

3

Kohler 12 380 03

PIN - USE 12 380 17
(Superseded to 24 380 16-S)

$4.49

$

In Stock, only 3 left!

0

4

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

5

Kohler 12 030 01-S

BEARING

$

$

Not available

5

Kohler 12 030 02-S

BEARING .25mm

$53.99

$

Usually ships in 2-5 days

0

5

Kohler 12 030 03-S

BEARING .50mm

$53.99

$

Usually ships in 2-5 days

0

6

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

8

Kohler SM-0631015

Washer, plain 6 mm

$

$

Not available

11

Kohler 12 380 04-S

PIN

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 12 144 11-S

SHAFT, GOVERNOR CROSS

$75.99

$

Usually ships in 2-5 days

0

13

Kohler 52 030 03-S

BEARING

$

$

Not available

14

Kohler 52 030 04-S

BEARING

$78.99

$

Usually ships in 2-5 days

0

15

Kohler 12 067 01

ROD - USE 12 067 05
(Superseded to 12 067 05)

Note: Replaced by 12-067-05

$147.99

$

Usually ships in 2-5 days

0

15

Kohler 12 067 02

ROD - USE 12 067 06
(Superseded to 12 067 06-S)

Note: Replaced by 12-067-06

$124.99

$

Usually ships in 2-5 days

0

16

Kohler 12 874 01-S

KIT, PISTON W/RING SET (STD) - DISCONTINUED

$

$

Not available

16

Kohler 12 874 02-S

KIT, PISTON W/RING SET (.25) - DISCONTINUED

$

$

Not available

16

Kohler 12 874 03-S

KIT, PISTON W/RING SET (.50)

$234.99

$

Usually ships in 2-5 days

0

17

Kohler 12 108 01-S

RING SET (STD.)

$123.99

$

In Stock, only 1 left!

0

17

Kohler 12 108 02-S

RING SET (.25)

$115.99

$

Usually ships in 2-5 days

0

17

Kohler 12 108 03-S

RING SET (.50)

$115.99

$

Usually ships in 2-5 days

0

18

Kohler 12 018 02-S

RETAINER

$2.49

$

In Stock, only 2 left!

0

20

Kohler 12 089 18

SPRING - USE 12 089 31
(Superseded to 12 089 37-S)

$2.99

$

In Stock, only 1 left!

0

21

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

21

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

21

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

21

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

21

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

21

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

22

Kohler 12 755 50-S

KIT, CAMSHAFT

Note: Includes 20,21

$176.99

$

Usually ships in 2-5 days

0

23

Kohler 12 144 10

SHAFT - USE 12 144 21
(Superseded to 12 144 26-S)

Note: Replaced by 12-144-21

$109.99

$

Usually ships in 2-5 days

0

24

Kohler 12 043 05-S

GOVERNOR GEAR ASSEMBLY

$25.99

$

Usually ships in 2-5 days

0

25

Kohler SM-0631005

Washer, plain 6 mm

$

$

Not available

26

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

27

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 9

0
