CH11-1630 - Kohler Command PRO Single Engine, Made for Cushman, 11hp, 8.2kW Fuel System (Cont.) 8-27-84 Parts Diagram

Command PRO Single Engine, Made for Cushman, 11hp, 8.2kW

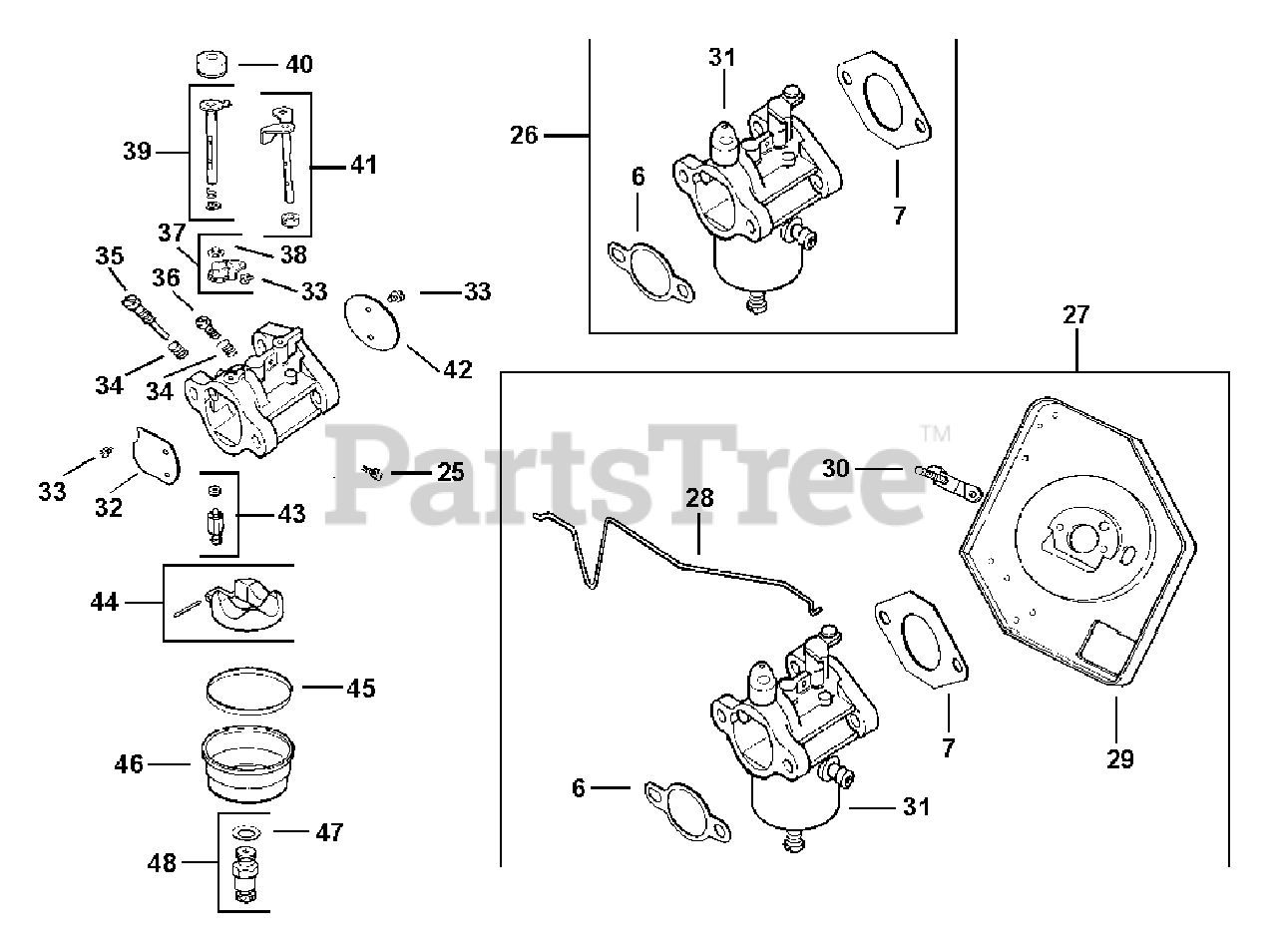

Fuel System (Cont.) 8-27-84 Parts Diagram

  • Title

6

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 5

0

7

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

26

Kohler 12 853 27

CARBURETOR - USE 12 853 59
(Superseded to 12 853 59)

Note: Includes 6,7,31, carburetor assembly 12-053-34.

$269.99

$

In Stock, only 1 left!

0

31

Kohler 12 053 34

Carburetor assembly

Note: Includes 32-48, carburetor repair kit 12-757-01, choke lever repair kit 12-757-11

$

$

Not available

32

Kohler 12 146 10-S

PLATE, CHOKE

$5.49

$

Usually ships in 2-5 days

0

33

Kohler 25 086 27-S

SCREW, VALVE

$4.49

$

Usually ships in 2-5 days

0

34

Kohler 12 089 09-S

SPRING

$2.49

$

In Stock, only 3 left!

0

35

Kohler 12 368 03-S

NEEDLE, IDLE - DISCONTINUED

$

$

Not available

36

Kohler 12 086 04-S

SCREW

$4.49

$

In Stock, only 2 left!

0

37

Kohler 12 757 12

KIT, CHOKE LEVER REPAIR - USE 12 757 32-S
(Superseded to 12 757 32-S)

Note: Includes 33,38

$13.99

$

In Stock, only 1 left!

0

38

Kohler 12 158 01-S

BUSHING, CHOKE

$12.99

$

Usually ships in 2-5 days

0

39

Kohler 12 144 18-S

SHAFT, CHOKE

$27.99

$

Usually ships in 2-5 days

0

40

Kohler 12 173 06-S

CAP, CHOKE LEVER

$5.99

$

In Stock, only 2 left!

0

41

Kohler 12 144 09-S

SHAFT, THROTTLE

$14.99

$

In Stock, only 2 left!

0

42

Kohler 12 146 03-S

PLATE

$10.99

$

Usually ships in 2-5 days

0

43

Needle and Seat

Note: Available only in carburetor repair kit.

$

$

Not available

44

Kohler 12 757 02-S

KIT, REPAIR FLOAT

$13.99

$

In Stock, only 3 left!

0

45

Kohler 12 041 05-S

GASKET, FUEL BOWL

$5.49

$

In Stock, only 2 left!

0

46

Kohler 12 104 01-S

BOWL

$7.49

$

In Stock, only 1 left!

0

47

Kohler 12 041 06-S

USE 25 041 03-S GASKET
(Superseded to 25 041 03-S)

$7.99

$

In Stock, only 3 left!

0

48

Kohler 12 755 19-S

KIT, HI SPEED NDLE W/GSKT-DISC.

Note: Includes 47

$

$

Not available
