CH11-1626 - Kohler Command PRO Single Engine, Made for Ingersoll Rand, 11hp, 8.2kW Ignition/Electrical 5-27-97 Parts Diagram

Command PRO Single Engine, Made for Ingersoll Rand, 11hp, 8.2kW

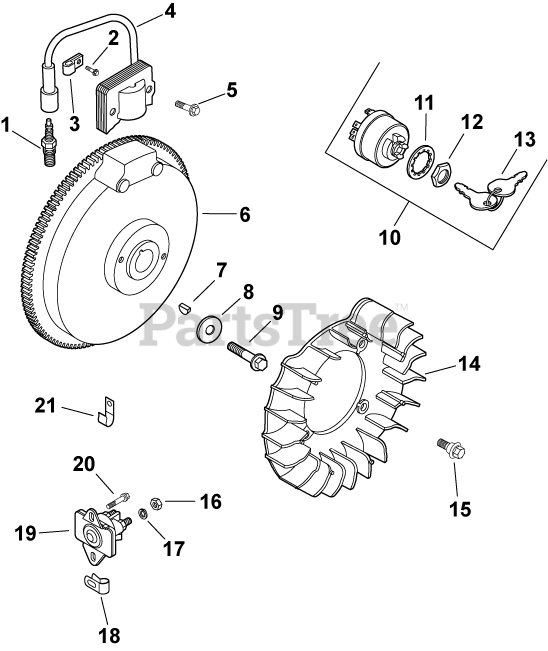

Ignition/Electrical 5-27-97 Parts Diagram

  • Title

1

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

2

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

3

Kohler X-728-1-S

CLIP

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 12 584 04-S

MODULE, IGNITION

$33.99

$

In Stock, only 1 left!

0

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

6

Kohler 12 025 15-S

FLYWHEEL - USE 12 025 16-S
(Superseded to 12 025 16-S)

$328.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 25 099 04-S

SWITCH ASSY, KEY (KM)-USE 25 099 32-S
(Superseded to 25 099 32-S)

Note: (includes 11-13)

$63.99

$

In Stock, only 4 left!

0

11

Kohler 48 468 02-S

WASHER, INTERNAL TOOTH

$3.49

$

Usually ships in 2-5 days

0

12

Kohler 48 100 01-S

NUT, KEY SWITCH

$4.49

$

In Stock, only 1 left!

0

13

Kohler 48 340 01-S1

KEY, SET -USE 48 340 01-S
(Superseded to 48 340 01-S)

$4.99

$

In Stock, only 1 left!

0

14

Kohler 12 157 06-S

FAN

$

$

Not available

15

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

16

Kohler 25 100 19-S

NUT, JAM 1/4-20 GRADE 2

$3.49

$

Usually ships in 2-5 days

0

17

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

18

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

19

Kohler 25 435 02-S

SOLENOID - WATERPROOF (KM)-USE 25 435 08
(Superseded to 25 435 08-S)

$76.99

$

In Stock, only 2 left!

0

20

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

21

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

25086110-S

Kohler 25 086 110-S

SCREW, WSH HD TAP #10-32x9/16"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

1217625-S

Kohler 12 176 25-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$

$

Not available

1251809-S

Kohler 12 518 09-S

LEAD, STARTER SOLENOID - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

1251829-S

Kohler 12 518 29-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2411335-S

Kohler 24 113 35-S

DECAL, SHUTDOWN

Note: NOT ILLUSTRATED

$19.99

$

Usually ships in 2-5 days

0

5211317-S

Kohler 52 113 17-S

DECAL, IGNITION

Note: NOT ILLUSTRATED

$18.99

$

Usually ships in 2-5 days

0

4130401-S

Kohler 41 304 01-S

FUSE

Note: NOT ILLUSTRATED

$

$

Not available
