CH11-16147 - Kohler Command PRO Single Engine, Made for Medart, 11hp, 8.2kW Exhaust 11-27-149 Parts Diagram

Command PRO Single Engine, Made for Medart, 11hp, 8.2kW

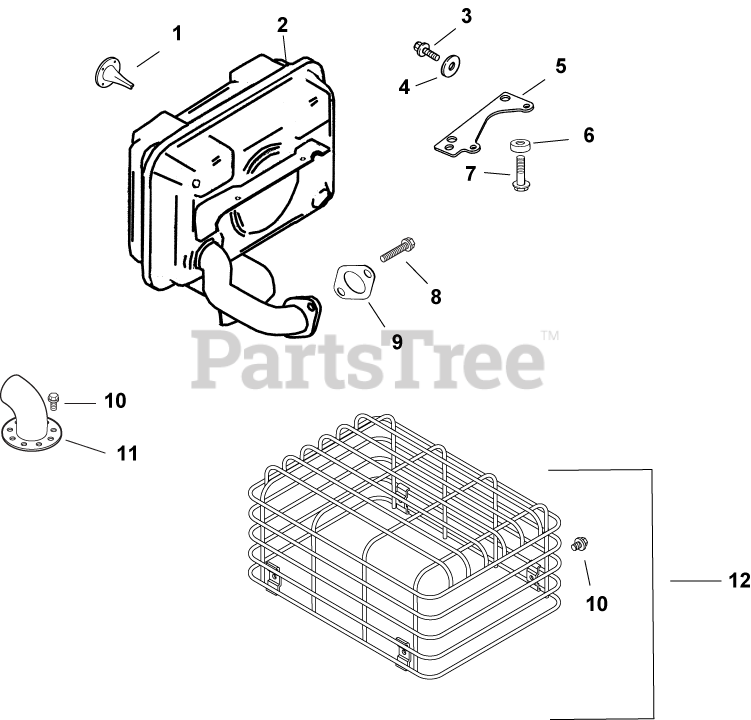

Exhaust 11-27-149 Parts Diagram

  • Title

1

Kohler 12 189 02-S

SPARK ARRESTOR

$49.99

$

Usually ships in 2-5 days

0

2

Kohler 12 068 40-S

MUFFLER

$

$

Not available

3

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

4

Kohler X-25-78-S

WASHER, PLAIN 1/4"

$3.49

$

In Stock, only 2 left!

0

5

Kohler 12 126 71-S

BRACKET, MUFFLER

$

$

Not available

6

Kohler 12 112 20-S

SPACER

$7.99

$

In Stock, only 1 left!

0

7

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 3 left!

0

8

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

9

Kohler 12 041 03-S

GASKET, EXHAUST MANIFOLD

$7.49

$

In Stock, Qty 10

0

10

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

11

Kohler 12 265 02-S

DEFLECTOR, EXHAUST

$14.99

$

Usually ships in 2-5 days

0

12

Kohler 12 755 107-S

KIT, MUFFLER GUARD

Note: (includes 11)

$99.99

$

In Stock, only 1 left!

0

M-545016-S

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
