CH11-16146 - Kohler Command PRO Single Engine, Made for Repower Specialist, 11hp, 8.2kW Fuel System 8-27-186 Parts Diagram

Command PRO Single Engine, Made for Repower Specialist, 11hp, 8.2kW

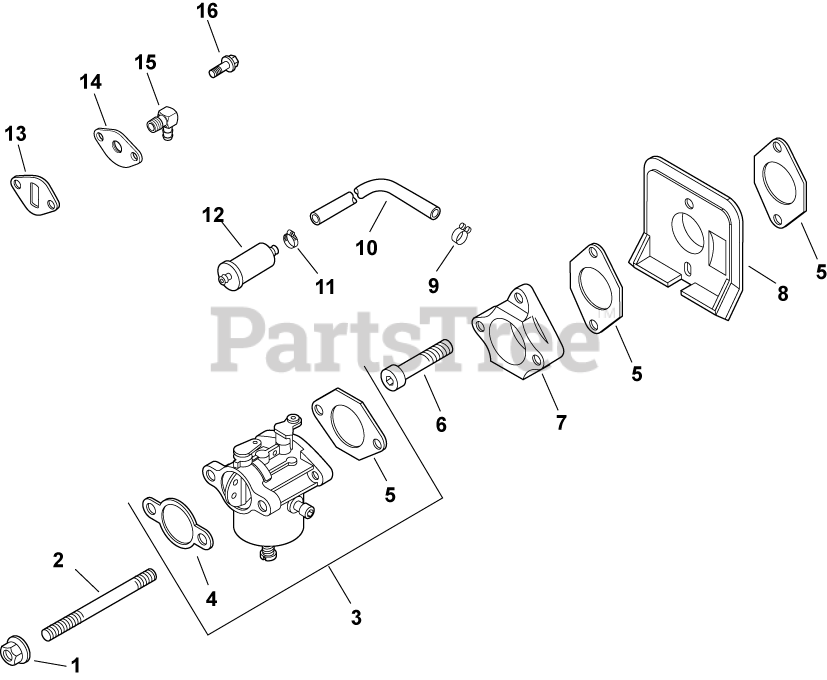

Fuel System 8-27-186 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

2

Kohler M-629116-S

STUD,M6X1.0X116

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 98-S

KIT, CARBURETOR

$269.99

$

In Stock, only 1 left!

0

4

Kohler 12 041 02-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 7

0

5

Kohler 12 041 01-S

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 15

0

6

Kohler M-644035-S

SCREW, SKT CAP M6X1.0X35

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 12 029 04-S

ADAPTER, CARBURETOR

$

$

Not available

8

Kohler 12 265 08-S

DEFLECTOR, HEAT

$9.49

$

In Stock, only 2 left!

0

9

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

10

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

11

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 2 left!

0

12

Kohler 25 050 21-S

FILTR,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

13

Kohler 25 041 10-S

GASKET, FUEL PUMP

$3.49

$

In Stock, only 1 left!

0

14

Kohler 52 096 42-S

COVER, FUEL PUMP PAD - DISCONTINUED

$

$

Not available

15

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

In Stock, only 1 left!

0

16

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0
