CH11-16144 - Kohler Command PRO Single Engine, Made for Vermeer, 11hp, 8.2kW Crankcase 2-27-74 Parts Diagram

Command PRO Single Engine, Made for Vermeer, 11hp, 8.2kW

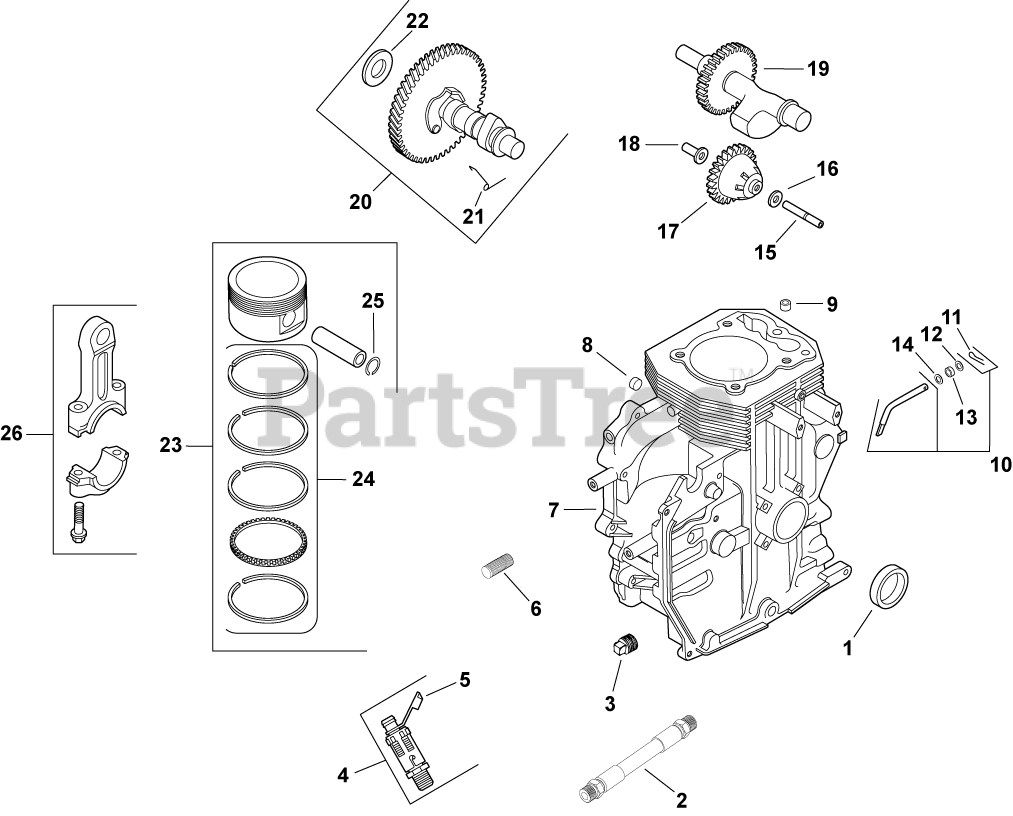

Crankcase 2-27-74 Parts Diagram

  • Title

1

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

2

Kohler 24 326 59-S

HOSE, OIL DRAIN USE 24 326 152-S
(Superseded to 24 326 152-S)

$32.99

$

In Stock, only 2 left!

0

3

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

4

Kohler 25 755 14-S

KIT, OIL DRAIN VALVE

Note: (includes 5)

$26.99

$

In Stock, only 1 left!

0

5

Kohler 25 173 14-S

CAP, OIL DRAIN VALVE

$2.49

$

In Stock, only 1 left!

0

6

Kohler 25 249 01-S

COUPLING, PIPE

$21.99

$

Usually ships in 2-5 days

0

7

CRANKCASE

Note: (Use: Shortblock)

$

$

Not available

8

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

9

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

10

Kohler 12 755 64-S

KIT, GOVERNOR CROSS SHAFT

Note: (includes 11)

$12.99

$

Usually ships in 2-5 days

0

11

Kohler 12 154 05-S

CLIP, HITCH PIN

$2.49

$

Usually ships in 2-5 days

0

12

Kohler M-631015-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 7

0

13

Kohler 12 032 01-S

SEAL, GOVERNOR CROSS SHAFT

$4.99

$

In Stock, Qty 8

0

14

Kohler X-25-102-S

WASHER, FLAT 1/4"

$2.49

$

In Stock, Qty 5

0

15

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

16

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 1 left!

0

17

Kohler 12 043 05-S

GOVERNOR GEAR ASSEMBLY

$25.99

$

Usually ships in 2-5 days

0

18

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 9

0

19

Kohler 12 144 26-S

SHAFT, BALANCE

$109.99

$

Usually ships in 2-5 days

0

20

Kohler 12 755 50-S

KIT, CAMSHAFT

Note: (includes 21,22 & 25 357 14-S)

$176.99

$

Usually ships in 2-5 days

0

21

Kohler 12 089 37-S

SPRING, ACTUATING

$2.99

$

In Stock, only 1 left!

0

22

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

23

Kohler 12 874 01-S

KIT, PISTON W/RING SET (STD) - DISCONTINUED

Note: (includes 24,25)

$

$

Not available

1287410-S

Kohler 12 874 10-S

KIT, PISTON W/RING SET (.08) - DISC.

$

$

Not available

1287402-S

Kohler 12 874 02-S

KIT, PISTON W/RING SET (.25) - DISCONTINUED

$

$

Not available

1287403-S

Kohler 12 874 03-S

KIT, PISTON W/RING SET (.50)

$234.99

$

Usually ships in 2-5 days

0

24

Kohler 12 108 01-S

RING SET (STD.)

$123.99

$

In Stock, only 1 left!

0

1210802-S

Kohler 12 108 02-S

RING SET (.25)

$115.99

$

Usually ships in 2-5 days

0

1210803-S

Kohler 12 108 03-S

RING SET (.50)

$115.99

$

Usually ships in 2-5 days

0

25

Kohler 12 018 02-S

RETAINER

$2.49

$

In Stock, only 2 left!

0

26

Kohler 12 067 05-S

ROD, CONNECTING (STD)

$147.99

$

Usually ships in 2-5 days

0

1206706-S

Kohler 12 067 06-S

ROD, CONNECTING (.25)

$124.99

$

Usually ships in 2-5 days

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0
