CH11-16138 - Kohler Command PRO Single Engine, Basic Version, 11hp, 8.2kW Oil Pan/Lubrication 3-27-114 Parts Diagram

Command PRO Single Engine, Basic Version, 11hp, 8.2kW

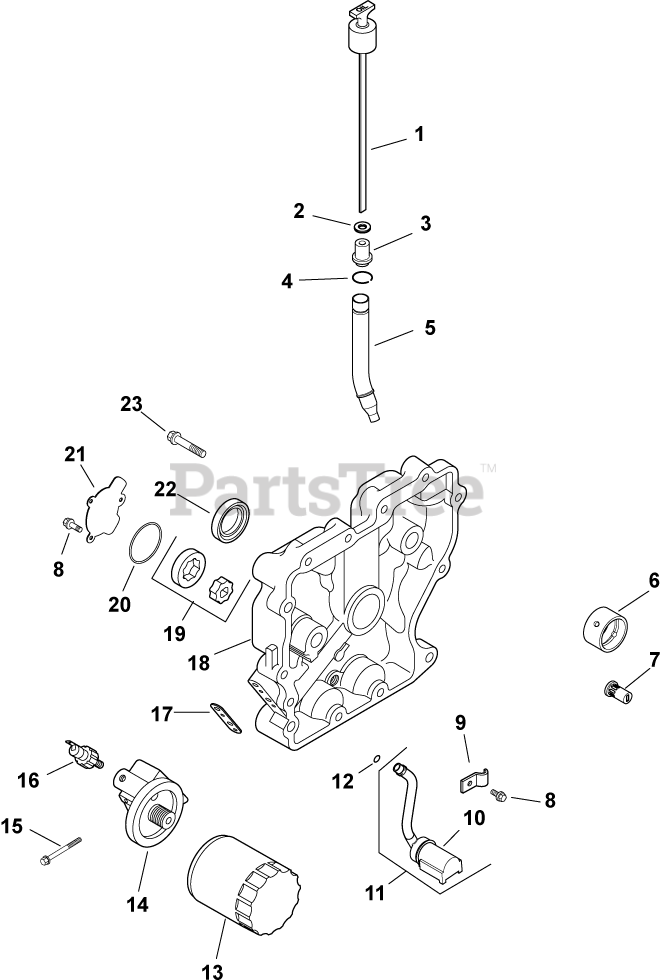

Oil Pan/Lubrication 3-27-114 Parts Diagram

  • Title

1

Kohler 47 038 27-S

DIPSTICK

$34.99

$

Usually ships in 2-5 days

0

2

Kohler X-25-44-S

WASHER

$3.99

$

Usually ships in 2-5 days

0

3

Kohler 52 032 14-S

SEAL USE 25 032 13-S
(Superseded to 25 032 13-S)

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 41 153 01-S

O-RING

$5.49

$

In Stock, only 1 left!

0

5

Kohler 12 123 16-S

TUBE, OIL FILL

$28.99

$

Usually ships in 2-5 days

0

6

Kohler 12 030 05-S

BEARING, CRANKSHAFT

$23.99

$

Usually ships in 2-5 days

0

7

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

8

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 52 154 01-S

CLIP

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 25 381 01-S

PICK-UP, OIL SCREEN

$53.99

$

Usually ships in 2-5 days

0

11

Kohler 12 755 73-S

KIT, OIL PICK-UP

Note: (includes 10)

$88.99

$

Usually ships in 2-5 days

0

12

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 2 left!

0

13

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

14

Kohler 12 029 08-S

ADAPTER, OIL FILTER

$120.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

16

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

17

Kohler 12 041 07-S

GASKET, OIL FILTER ADAPTER

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 12 009 36-S

CLOSURE PLATE ASSEMBLY - DISCONTINUED

Note: (includes 6,7,8 [qty 3], 20-22)

$

$

Not available

19

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

20

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

21

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

22

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

23

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 7

0

2511305-S

Kohler 25 113 05-S

DECAL, OIL SENTRY - (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available
