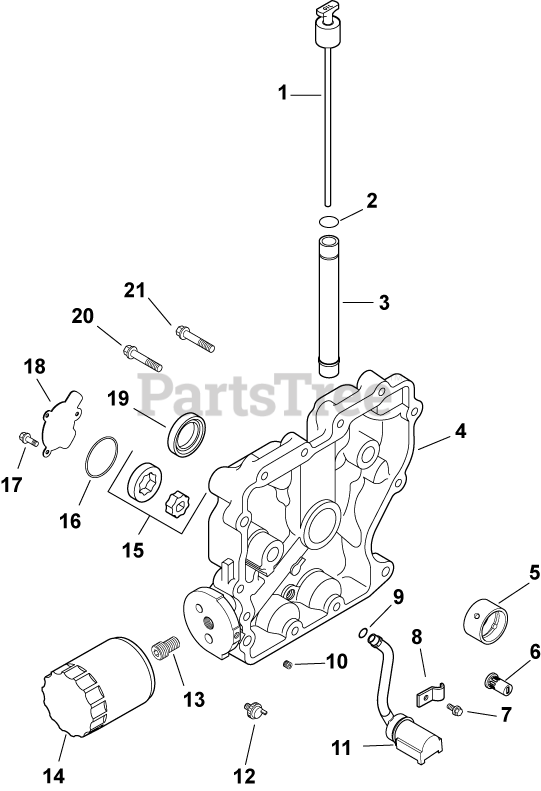

CH11-16127 - Kohler Command PRO Single Engine, Made for Netherlands, 11hp, 8.2kW Oil/Pan Lubrication 3-27-111 Parts Diagram

Command PRO Single Engine, Made for Netherlands, 11hp, 8.2kW

Oil/Pan Lubrication 3-27-111 Parts Diagram

  • Title
1

$

$

Not available

$5.49

$

In Stock, only 1 left!

0

3

Kohler 24 123 11-S

KIT, OIL FILL TUBE - METAL

$36.99

$

In Stock, only 1 left!

0

4

Kohler 12 009 48-S

PLATE, CLOSURE & BEARING

$500.99

$

Usually ships in 2-5 days

0

5

Kohler 12 009 48-S

PLATE, CLOSURE & BEARING

$500.99

$

Usually ships in 2-5 days

0

6

Kohler 25 462 09-S

VALVE, OIL PRESSURE RELIEF

$13.99

$

In Stock, only 1 left!

0

7

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

$6.49

$

Usually ships in 2-5 days

0

9

Kohler 12 153 04-S

O-RING (.5" DIA)

$2.49

$

In Stock, only 1 left!

0

10

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

11

Kohler 12 755 73-S

KIT, OIL PICK-UP

$88.99

$

Usually ships in 2-5 days

0

12

Kohler 25 099 24-S

SWITCH, PRESSURE (CLOSED)-USE 25 099 27-
(Superseded to 25 099 27-S)

$15.99

$

In Stock, Qty 5

0

13

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

14

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

15

Kohler 12 393 01-S

PUMP ASSEMBLY, OIL

$

$

Not available

16

Kohler 12 153 05-S

O-RING (1.78" DIA)

$7.99

$

In Stock, only 1 left!

0

17

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

18

Kohler 12 096 21-S

COVER, OIL PUMP

$14.99

$

Usually ships in 2-5 days

0

19

Kohler 12 032 03-S

SEAL, OIL

$9.99

$

Usually ships in 2-5 days

0

20

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

21

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 5

0

2511305-S

Kohler 25 113 05-S

DECAL, OIL SENTRY - (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available
